JUCI Manual

Introduction

Administration of the gateway is done through a web interface. All settings are accessible through an address on your local network.

Requirements

To access the web interface, you need the following:

An installed gateway device.

A computer connected to the LAN or WLAN port on the device.

A web browser installed on the computer.

The default address for the web interface is http://192.168.1.1.

Access web interface

To access the web interface you need to use your web browser. There are multiple ways of accessing the interface.

→ Read more...

Login

To login to the web interface, you use a user name and a password.

→ Read more...

User Roles

The web interface uses Roles to provide and restrict access to the various features in the device.

There are four pre-defined roles: User, Support, Admin, and Root.

→ Read more...

User Modes

In addition to User Roles, the User Modes may provide further constraints on what settings and features are displayed in the web interface.

Note: The mode affects display only, the features are still available and operational.

→ Read more...

Features

Depending on your device and/or geographical region, certain features may be unavailable in the interface.

→ Read more...

The menu contains a number of items, which provide access to various parts of the web interface.

→ Read more...

Applying changes

When you change a setting or a value in the interface, it gets added to a list of changes. The changes will not take effect until you click apply.

→ Read more...

User Modes

In addition to User Roles, the User Modes may provide further constraints on what settings and features are displayed in the web interface.

Note: The mode affects display only, the features are still available and operational.

Basic Mode

Basic mode provides access to a selected set of settings and aspects of features, displaying a reduced set of options. This mode is suitable for the most common tasks and configurations.

→ Read more...

Expert Mode

Expert mode provides access to a larger number of settings and aspects of features. This mode is suitable when you have deeper technical knowledge and want to do specific customizations or troubleshooting.

→ Read more...

Basic Mode

Basic mode provides access to a selected set of settings and aspects of features, displaying a reduced set of options. This mode is suitable for the most common tasks and configurations.

Features

In basic mode, all Expert mode settings and views are hidden from the interface. However, if you select a particular task in basic mode that requires expert mode settings, they will automatically be displayed.

Expert Mode

Expert mode provides access to a larger number of settings and aspects of features. This mode is suitable when you have deeper technical knowledge and want to do specific customizations or troubleshooting.

Features

In expert mode, all Basic mode settings and views are also shown.

User Roles

The web interface uses Roles to provide and restrict access to the various features in the device.

There are four pre-defined roles: User, Support, Admin, and Root.

User

The User role has restricted access to basic set of features.

login: user

password: user

Support

The Support role has elevated access to basic and a set of advanced features.

login: support

password:support

Admin

The Admin role has unrestricted access to all basic and advanced features.

login: admin

password:admin

Root

The Root role has unrestricted to the device, and can be used for command line access to the device via ssh.

login: root

password:root

Features

Depending on your device and/or geographical region, certain features may be unavailable in the interface.

Availability

Certain features may not be available in your interface, depending on several factors:

Device - Your device may be limited in which ports are avaible.

Geographical region - Features might not be offered in some regions or countries.

Operator Settings - Your operator may have restricted, altered or added features in the software.

The menu contains a number of items, which provide access to various parts of the web interface.

Menu

Overview

The Overview page shows the most important statuses and settings for your device.

→ Read more...

Voice

The Voice provides access to settings relating to voice communications through the device.

→ Read more...

Network

The Network view provides access to the devices, connections and available configurations in the network.

→ Read more...

WIFI

The WiFi view shows you information about your wireless network.

→ Read more...

System

The System view provides access to device information, management, provisioning and settings.

→ Read more...

Status

The Status area provides an overview of the current situation for your device, network and services, and also contains diagnostic tools.

→ Read more...

Applying changes

When you change a setting or a value in the interface, it gets added to a list of changes. The changes will not take effect until you click apply.

The unapplied changes and apply button are shown at the bottom of the window.

Changes

To make the changes take effect click Apply.

To keep the current state without any changes click Cancel.

Access web interface

To access the web interface you need to use your web browser. There are multiple ways of accessing the interface.

IPv4

The standard IPv4 address for the interface is http://192.168.1.1.

Hostname

The web interface can be accessed through a default hostname, for example inteno.lan/ or routerlogin.net/, or through custom hostnames set up by the provider.

IPv6

An IPv6 address or IPv6 hostname can also be used to access the web gui.

* Launch your web browser * Enter the address (for example: http://192.168.1.1) * Press [Enter].

You are taken to the web interface login page.

Login

To login to the web interface, you use a user name and a password.

(For default passwords see: User Roles).

Note: Your operator may have specified different passwords and user levels. If so, you need to request those from your operator.

Log in to the web interface:

  • Enter a user name
  • Enter the password
  • Click OK.

You are taken to the web interface Overview page.

Overview

The Overview page shows the most important statuses and settings for your device.

Parts

Main image

The overview has three parts: a device network map, configuration shortcuts, and status panels.

Device Network Map

The device map shows how your device is connected to the LAN and the WAN, as well as other devices in the local network.

→ Read more...

Configuration Shortcuts

The configurations show status for and provide shortcuts provide quick access to various common settings.

→ Read more...

Status Panels

The status panels display status information about selected features. They also allow you quick access to configuration of the most common features.

→ Read more...

Device Network Map

The device map shows how your device is connected to the LAN and the WAN, as well as other devices in the local network.

View

Map

Colors

The status of a device is indicated by the color of the icon.

Color Status
Green Enabled and active
Black Enabled, not active
Yellow Active, with warnings.
Red Active, not functional.

Edit Node Settings

You can edit the settings for a node directly from the Device Network Map.

To edit a settings for a node:

  • Click the node in the map

A window containing settings tabs opens.

Status

The Status tab shows information about the client and the connection.

→ Read more...

Static Leases

The Static Leases tab allows you to assign a static IP address dhcp lease to the client.

→ Read more...

Forwarding

Port Forwarding allows remote computers to connect to a specific device within your private network.

→ Read more...

Parental Control

Parental control is used to restrict access to the network for particular devices.

→ Read more...

Realtime Graphs

The Realtime Graphs view provides access to graphical representations of status for the device. The graphs scroll as time progresses and lines indicate the current status.

→ Read more...

Details

More detailed Information about the status of an item in the map is availabe by pointing the cursor at an icon in the map.

View

Details

The information displayed in the popups varies with the item being viewed.

WAN

Wan

Wan

Device

Device

LAN

Lan

Port

Port

Wifi

Wifi

Client

Client

Configuration Shortcuts

The configurations show status for and provide shortcuts provide quick access to various common settings.

Shortcuts

Option
Wireless Active wireless radios.
Ethernet LAN ports in use on the device.
LAN Active LAN
WAN Status of WAN connection.
USB Connected USB devices, if any.
Voice Voice port status, if any.
Profile Selected network profile, if any.

Status Panels

The status panels display status information about selected features. They also allow you quick access to configuration of the most common features.

Panels

WIFI

The WiFi status panel lets you change the default wireless security settings (WPS) to make your network more secure. You can also view the wifi status and edit the wireless interface.

→ Read more...

LAN

The LAN panel shows basic information about the device and connected clients IP addresses.

From the LAN status panel you can configure the DHCP settings for the device.

→ Read more...

WAN

The WAN panel displays the status of your WAN. It also lets you configure DNS servers.

→ Read more...

USB

The USB panel displays the status of any connected USB devices.

→ Read more...

Voice

The Voice panel shows the status of the ringing schedule connected phone lines.

→ Read more...

Profile

The Profile panel shows the network profiles configured on your device, if any.

→ Read more...

WIFI

The WiFi status panel lets you change the default wireless security settings (WPS) to make your network more secure. You can also view the wifi status and edit the wireless interface.

WiFi panel

WPS settings

WPS makes it easier to connect other wireless devices to your device on an encrypted channel.

→ Read more...

Edit 5GHz Wireless Interface

In the edit wireless interface view you can change different aspects of your interface.

→ Read more...

Edit 2.4GHz Wireless Interface

In the edit wireless interface view you can change different aspects of your interface.

→ Read more...

WPS settings

WPS makes it easier to connect other wireless devices to your device on an encrypted channel.

WPS

To open the WPS view:

  • Click WPS

To pair a device via WPS:

  • Click Pair
  • Press the corresponding button on the device you wish to connect

Your device will be open for pairing for two minutes.

Edit 2.4GHz Wireless Interface

In the edit wireless interface view you can change different aspects of your interface.

Wireless interface

Item Comment
Enabled Turn on or off.
WiFi Network Name Edit name of SSID network
Broadcast SSID Toggle to make the network SSID visible or invisible
Encryption Selected encryption method
Cipher Form of Cipher
WiFi Key (Password) Text to use as wifi key
Show Key Text Displays the wifi key text

Wireless Settings

To open The wifi status view for 2.4GHZ:

  • Click 2.4 GHz to open the wifi status view

To edit the wireless interface for a radio:

  • Click the edit button to open up the wireless interface settings
  • Edit the wireless interface
  • Click Save

Edit 5GHz Wireless Interface

In the edit wireless interface view you can change different aspects of your interface.

Wireless interface

Item Comment
Enabled Toggle interface on or off.
WiFi Network Name Edit name of SSID network.
Broadcast SSID Toggle to make the network SSID visible or invisible.
Encryption Selected encryption method.
Cipher Form of Cipher.
WiFi Key (Password) Text to use as wifi key.
Show Key Text Displays the wifi key text.

Wireless Settings

To open the wifi status view for GHZ:

  • Click 5GHz to open the wifi status view

To edit the wireless interface for a radio:

  • Click the edit button to open up the wireless interface settings
  • Edit the wireless interface
  • Click Save

LAN

The LAN panel shows basic information about the device and connected clients IP addresses.

From the LAN status panel you can configure the DHCP settings for the device.

LAN panel

To open the Edit LAN Settings dialog, click the edit button.

To view a more detailed overview of the clients, click the expand button

To view or details about a client click the client in the list.

Detailed Client Overview

In The Detailed Client Overview, information about the clients in the lan is displayed.

→ Read more...

Edit LAN Settings

In The Edit LAN settings view you can change different features about your network.

→ Read more...

Client

The Client dialog displays information about the connected clients and allows you to edit their configuration.

→ Read more...

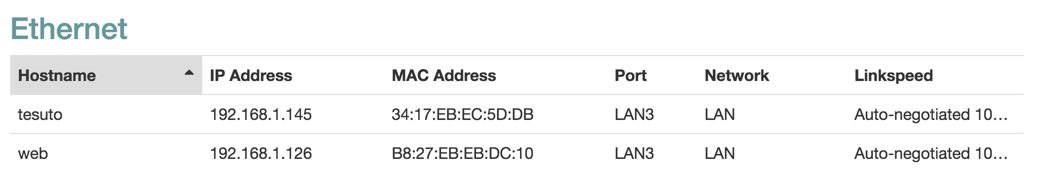

Detailed Client Overview

In The Detailed Client Overview, information about the clients in the lan is displayed.

Overview

Item Description
Hostname Client hostname.
IPv4 Address Client IPv4 Address.
MAC Address Client MAC Address .
Port Device port.
Network Network interface for the client.
Link Speed Type of negotiation, speed and duplex for the connection.

Edit LAN Settings

In The Edit LAN settings view you can change different features about your network.

LAN Settings

Item Description
IPv4 Address Device DHCP address
IPv4 Subnet Mask IPv4 Subnet Mask
IPv4 Broadcast Mask IPv4 Broadcast Mask
DHCP Server Turn DHCP Server on or off.
DHCP Pool Start Start IP number for the DHCP Pool start number IP address
DHCP Pool Size Number of IP addresses in the DHCP Pool
DHCP Lease Time DHCP Lease Time for the LAN.
Static DHCP Reserve an IP address DHCP Lease for a connected device.

Static DHCP

The Static DHCP section lets you configure IP address DHCP Leases for connected devices. |

Item Description
Add a device to the static DHCP list
Device Name Hostname for IPv4
MAC Address Client MAC Address.
IP Address IP address for IPv4
DUID DUID for IPv6
Host ID Host ID for IPv6

Add Static DHCP Lease

To add a static DHCP lease:

  • Add an existing client or create a lease from scratch:
    • To select an existing client:
      • Click Add connected host to open the list
      • Select the desired client
      • Click the add button
    • To add a static DHCP lease manually:
      • Only click the add button

The information for existing client is added automatically, otherwise the fields will be empty.

  • Add or edit the client information as neeed.
  • Click Save

Client

The Client dialog displays information about the connected clients and allows you to edit their configuration.

Information about the client is divided into several tabs.

Client

Status

The Status tab shows information about the client and the connection.

→ Read more...

Port Forwarding

In the Port Forwarding tab you can map incoming connections on different ports to ports on the client.

→ Read more...

Static Leases

The Static Leases tab allows you to assign a static IP address dhcp lease to the client.

→ Read more...

Parental Control

Parental control is used to restrict access to the network for particular devices.

→ Read more...

Realtime Graphs

For WiFi clients (it is not shown for regular lan clients), the Realtime Graphs tab you can map incoming connections on different ports to ports on the client.

→ Read more...

Parental Control

Parental control is used to restrict access to the network for particular devices.

Internet Access Scheduling

Parental control is handled by setting schedules where access is restricted to explicitly named MAC addresses.

Item Description
Weekdays List of days the filter applies.
Start Time Time of day to start filtering.
Stop Time Time of day to stop filtering.
Edit filtering rule.
Delete filtering rule.

Add Parental Control

The Internet Access Schedule rules you add from the client panel will only apply to that client.

Internet Access Scheduling

Parental control is handled by setting schedules where access is restricted to explicitly named MAC addresses.

When adding a parental control filter from the client panel, the MAC Address is automatically selected from the client.

Add an Internet Access Schedule
  • Select a Time Frame from the menu
  • Edit the selected Days as needed
  • Enter a time:
    • From
    • To
  • Click Save
  • Click Close
Start and Stop Times

The start time for a rule has to be lower than the end time.

If you want to have a rule that goes over midnight, you need to add two rules, one up until midnight, and one from midnight to when you want the rule to end.

For example:

Rule one: From 21:00 To 23:59 Rule two: From 00:00 To 06:00

A single rule of From 21:00 To 06:00 will not be saved.

Throughput Graph

For WiFi clients, the Throughput Graph tab you can map incoming connections on different ports to ports on the client.

Graph

Graph

The display is shown in realtime, with lines representing traffic in kbit/s:

Color Traffic
 Blue  Downstream.
 Red  Upstream.

Table

The table below the graph displays collected data since the tab was opened, and the total connection uptime since last downtime.

Table

Item Description
Download Speed Current download speed.
Upload Speed Current upload speed.
Total Received Data Downloaded data since the tab was opened.
Total Transmitted Data Transmitted data since the tab was opened.
Total Uptime Connection uptime since last downtime.

Status

The Status tab shows information about the client and the connection.

Status Information

Item Description
Hostname The client Hostname.
IP Address Assigned IP address.
MAC Address MAC address.
DHCP DHCP status.
Connected Connection status.
Link Speed Type of negotiation, speed and duplex for the connection.

Wireless Details

For WiFi clients, the Wireless Details section shows detailed information about the wireless connection. All data is measured since last downtime.

Item Description Example
Frequency WiFi frequency band for the access point. 2.4GHz
RSSI RSSI strength for the signal. -64 dBm
SNR Signal-To-Noise-Ratio. 21 dBm
Idle Time idle. 1 s
In Network Time in network. 1813 s
WME Status of WMM. True
Power Save Is Power save enabled? False
N Mode Is 802_11n supported? True
VHT Mode Is 802_11ac supported? False
TX Bytes Transmitted bytes. 2438426
RX Bytes Transmitted bytes. 347988
TX Rate Transmission rate. 58 Mbps
RX Rate Recieve rate. 6 Mbps

Port Forwarding

In the Port Forwarding tab you can map incoming connections on different ports to ports on the client.

Mapping Section

Item Description
Name Port name.
Excluded ports Protected ports that can't be mapped.
Public port Public (external) port.
Private port Private (client) port.
Protocol Protocol.
Protocol

The protocol setting filters traffic by protocol for the port forward.

Protocol Description
TCP + UDP Both TCP and UDP.
TCP TCP only.
UDP UDP only.
All Any protocol.

Mapping Settings

To map incoming connections:

  • Click Add mapping to open the mapping section

The mapping section lets you add configuration settings for the mapping.

Ports can be added one by one (80), as comma-separated lists (8080, 8090) or as ranges (21-22).

  • Add information:
    • Add a name as identification
    • Add ports:
      • Add public/incoming port(s)
      • Add private/client port(s)
    • Select protocol
  • Click Save
  • Click Close

Your information has now been saved and is visible in the mapping list.

Static Leases

The Static Leases tab allows you to assign a static IP address dhcp lease to the client.

Static Leases Section

Item Description
Device Name Hostname for IPv4
IP Address IP address for IPv4
Tag Tag with further DHCP Options as configured in the DHCP/DNS settings.
DUID DUID for IPv6
Host ID Host ID for IPv6

Static Leases Settings

To assign a static address to the client:

  • Click the add button to open the section
  • Add information for the type of network(s) you use

WAN

The WAN panel displays the status of your WAN. It also lets you configure DNS servers.

WAN panel

Item Description
Internet Status of Internet connection.
Link Status of link.
WAN IP(s) IPv4 and IPv6 address to the device.
Gateway(s) IPv4 and IPv6 address to gateway.
Link Type Ethernet
Link Speed Auto-negotiated 1000 Mbps Full Duplex
DNS-Servers IPv4 and IPV6 addresses to DNS servers.
WAN uptime Time since last disconnect for IPv4 and IPV6 WAN connection.

USB

The USB panel displays the status of any connected USB devices.

USB panel

Voice

The Voice panel shows the status of the ringing schedule connected phone lines.

Voice panel

The Voice panel is not available in certain regions.

Profile

The Profile panel shows the network profiles configured on your device, if any.

The network profiles are configured by the manufacturer for each device type.

Depending on the network profile selected, additional panels may be displayed in the overview.

Voice

The Voice provides access to settings relating to voice communications through the device.

Call Log

The Call Log view shows a list of the recent calls handled through the device.

→ Read more...

SIP Accounts

The SIP Accounts view shows information about configured SIP accounts for the device.

→ Read more...

SIP Users

The SIP Users view shows information about configured SIP users for the device.

→ Read more...

Voice Lines

The Voice Lines view shows a list of available voice lines for the device and allows you to configure them.

→ Read more...

Advanced Settings

The Advanced Settings view contains advanced settings for SIP , voice lines and dial plans.

→ Read more...

Number Blocking

The Number Blocking view allows you to block outgoing calls to specific numbers or or number ranges.

→ Read more...

Ringing Schedule

The Ringing Schedule view lets you define when telephones should be allowed to ring.

→ Read more...

Speed Dialing

The Speed Dialing view lets you configure a set of shortcode numbers that convert to the specified numbers when dialled.

→ Read more...

DECT Radio

The Dect Radio view allows you to configure DECT radio settings.

→ Read more...

Call Log

The Call Log view shows a list of the recent calls handled through the device.

Item Description
Date Date for the call.
Time Time for the call.
External Number Calling number.
Internal Number Receiving number.
Duration Duration of the call.

SIP Accounts

The SIP Accounts view shows information about configured SIP accounts for the device.

At the top of the page is a list of selectable accounts.

When a particular account is selected, details about it is shown in the configuration section.

Item Description
Enabled Turn account on or off.
Account Name Name of SIP account.
SIP domain name Name of SIP domain.
SIP Username The SIP account username for the account.
SIP Authentication Name SIP Authentication Name used with password to register with SIP server.
SIP Password Enter new password to change.
Show Key Text Display the password.
Display Name Display name used in Caller ID.
SIP Server/Registrar Address for SIP server.
SIP Server/Registrar Port Port for SIP server.
SIP Outbound Proxy Address for outbound proxy.
SIP Outbound Proxy Port Port for outbound proxy.
Incoming Phone Lines Check boxes for connected phone line ports.
Preferred codecs Order of preference for SIP codecs.
G.711MuLaw Packetization Packetization setting for G.711MuLaw.
G.726 Packetization Packetization setting for G.726.
G.729a Packetization Packetization setting for G.711ALaw.
G.G.729a Packetization Packetization setting for G.729a.
Autoframing Negotiate packetization when call is established.
SIP Transport UDP / TCP / TLS
Encryption Use Secure Real-time Transport Protocol.
Use as Fax Indicate that this SIP account will be used for a fax machine. This will force some settings.
Mailbox Voicemail inbox.
Add account

You can add as many accounts as you needed.

To add a account:

  • Click the Add button
  • Enter a Name for the account
  • Enter values as needed.
  • Click Apply

SIP Users

The SIP Users view shows information about configured SIP users for the device.

View

At the top of the page is a list of selectable accounts.

When a particular account is selected, details about it is shown in the configuration section.

Item Description
Enabled Turn user on or off.
Name Display name used in Caller ID.
Extension Extension for this user.
User Name SIP user name.
User Password Enter new password to change.
Show Key Text Display the password.
Call out using SIP provider SIP account for outbound calls.
Mailbox Voicemail inbox.
Preferred codecs Order of preference for SIP codecs.
Host Specific host for this user.
Qualify Check that the user is reachable.
Add user

You can add as many users as you needed.

To add a user:

  • Click the Add button
  • Enter a Name for the user
  • Enter values as needed.
  • Click Apply

Voice Lines

The Voice Lines view shows a list of available voice lines for the device and allows you to configure them.

Each available voice line has its own panel. Detailed information about each line is shown when you expand the panel.

The panels allow you to configure individual voice lines.

Item Description
Name Identifier for the DECT line.
Internal Number Diect call number.
Outgoing Calls Number SIP account for external calls.
Call Waiting Enable call waiting notification.
Call ID Restriction Hide caller ID.
Voice Activity Detection Detect voice (Transparent / Aggressive / Conservative).
Comfort Noise Generation Generated noise (White / Hot / Spectrum estimate).
Echo cancellation Remove echoes.
Transmit gain Increase transmitted signal.
Receive gain Increase received signal.

Advanced Settings

The Advanced Settings view contains advanced settings for SIP , voice lines and dial plans.

SIP

The Advanced SIP Settings view lets you configure detailed parameters for your SIP services.

→ Read more...

Line

The Advanced Line Settings view lets you configure detailed parameters for your voice lines .

→ Read more...

Dial Plan

The Custom Dial plan view allows you to configure dialling digits for various services and networks.

→ Read more...

SIP

The Advanced SIP Settings view lets you configure detailed parameters for your SIP services.

Item Description
Sip Proxy servers Proxies to allow incoming calls from.
Bind Interface Restrict listening to particular WAN interface.
Bindport Port to use for UDP listening.
User Agent Custom User-Agent information in the SIP header.
RTP Port Range Ports to use for RTP
DTMF Mode Mode for DTMF (Compatibility / RFC 2833 / SIP INFO / Inband).
Register Interval Time in seconds between registration attempts.
Realm SIP Realm for digest authentication.
Localnet Network addresses that are considered inside of the NAT network.
Register Attempts Number of registration attempts before giving up.
Register Timeout Time before giving up a registration attempt.
Register Back-off Attempts Number of attempts before back-off.
Register Back-off Timeout Time in back-off before giving up attempt to register.
Remote Hold Send hold events to proxy (Let network handle music on hold).
SRV Lookup Enable DNS SRV lookup.
DNS Manager Enable Asterisk DNS manager.
DNS Manager Refresh Interval Refresh interval for the DNS manager.
Line suffix in contact header Add suffix to SIP contact header with information about called lines.
SIP DiffServ Differentiated services type of service for SIP data.
Audio DiffServ Differentiated services type of service for audio data.
Congestion tone Tone to play on congestion. (Congestion / Info)
STUN server STUN service provider.
TLS/SSL Version TLS v1 / TLS v2 / TLS v3.
Cipher string Cipher identifier string.
Trusted CA Public key for a trusted Certificate Authority.
Trusted CA Certificate

To add a Trusted CA Certificate key:

  • Click Add
  • Copy the public key
  • Paste the key into the window
  • Click Save
  • Click Apply

Line

The Advanced Line Settings view lets you configure detailed parameters for your voice lines .

Item Description
Locale selection Country for device location.
Enable Jitter Buffer Turn jitter prevention buffer on or off.
Force Jitter Buffer Forces the receiver to use a jitter buffer.
Jitter Buffer implementation The type of jitter buffer Fixed / Adaptive.
Maximum Jitter Buffer size Size of jitter buffer (ms).
Enable Packet Loss Concealment Turn PLC on or off.
Inter-digit timeout Time between dialled digits before timing out (ms).

Dial Plan

The Custom Dial plan view allows you to configure dialling digits for various services and networks.

Item Description
Enable incoming Turn dial plan on or off for incoming calls.
Enable outgoing Turn dial plan on or off for outgoing calls.
Enable custom hangup Turn custom hang up on or off.
All Ports Extension Port test extension.
Test Audio Extension Audo tests the audio quality.
Test Echo Extension Echo returns the outgoing audio from a channel back to the channel.

Number Blocking

The Number Blocking view allows you to block outgoing calls to specific numbers or or number ranges.

Outgoing

Item Description
Outgoing Number Blocking Turn blocking on or off for outgoing calls.
Do not allow connections to these numbers List of blocked numbers.
Block connections to all foreign numbers Block calls to different locales.
Block connections to all special rate numbers Block calls to premium rate or pay services.

Incoming

Item Description
Incoming Number Blocking Turn blocking on or off for incoming calls.
Do not allow connections from these numbers List of blocked numbers.
Block number

To block a number:

  • Click the add button
  • Click in the Phone extension box
  • Enter the number
  • Click outside of the Phone extension box
  • Click Apply
Block number range

You can use # as wildcard to define number ranges. For example “0160#” blocks all numbers starting with “0160”.

To block a sequence of numbers:

  • Click the add button
  • Enter digits
  • Add '#' as wildcard
  • Enter the number
  • Click outside of the Phone extension box
  • Click Apply

Ringing Schedule

The Ringing Schedule view lets you define when telephones should be allowed to ring.

Item Description
Ringing Schedule Turn the schedule on or off.
During the times below ringing is Enabled / Disabled.
Day List of days when status applies.
Time Time interval when status applies.
Status Enabled / Disabled.

Speed Dialing

The Speed Dialing view lets you configure a set of shortcode numbers that convert to the specified numbers when dialled.

The speed dialling list consists of the numbers 0 to 9. For each of these, you can add a number or extension that will be called when somebody dials the number.

Item Description
Speed Dialing Turn speed dialling on or off.
Remove all entries from speed dial list Clears the list

DECT Radio

The Dect Radio view allows you to configure DECT radio settings.

Item Description
DECT Radio Auto / On / Off.
Radio Status Current status for the DECT Radio.
Pair DECT Device Button to start pairing for a DECT device.
Codecs DECT codecs available for the device.

At the bottom of the page is a list of currently paired devices.

Item Description
ID Pairing ID.
IPUI IPUI number.
Codecs DECT codecs available for the device.

Network

The Network view provides access to the devices, connections and available configurations in the network.

Devices

The Devices view allows you to configure settings for various network types.

→ Read more...

XDSL

The xDSL view allows you to configure line settings and profiles.

→ Read more...

Connections

The Connections view allows you configure various connection interfaces to use in your device.

→ Read more...

Routes

Static routes are useful if you have several networks accessible from your router and you want to correctly route packets between them.

→ Read more...

Firewall

The firewall lets you filter traffic, set up port forwarding or expose particular services to the outside world.

→ Read more...

Parental Control

Parental control is used to restrict access to the network for particular devices.

→ Read more...

Quality Of Service

The Quality Of Service view allows you to configure parameters for Quality of Service through applying groups of classes to interfaces.

→ Read more...

MultiWAN

The MultiWAN view allows you to create and configure WAN traffic divisions for load balancing and failover and apply traffic rules.

→ Read more...

Services

The Services view allows you to configure the services connected device.

→ Read more...

Devices

The Devices view allows you to configure settings for various network types.

Base Device

The Base Device view shows you a list of devices that are used to access the network.

→ Read more...

Ethernet

The Ethernet view allows you to configure the physical ethernet interfaces of your device.

→ Read more...

ADSL

The ADSL view allows you to configure ADSL devices.

→ Read more...

VDSL

The VDSL view allows you to configure VDSL devices.

→ Read more...

VLAN

The VLAN view allows you to configure VLAN devices.

→ Read more...

Base Device

The Base Device view shows you a list of devices that are used to access the network.

Option Description
Type Type of device
Name Name of device
Adapter Adapter name
MAC MAC address
MTU Number of MTU bytes
Status Device Status
Device Status

The status of a device is indicated by the color of the icon.

Color Status
Green Enabled and active
Black Enabled, not active

Note: These are the default colors. Your operator may use a different coloring scheme.

Ethernet

The Ethernet view allows you to configure the physical ethernet interfaces of your device.

The configuration is divided into multiple sections.

Section Description
Interface List List of selectable the connected ethernet port devices.
Port Speed Configuration of transmission speed, duplex setting and auto-negotiation.
Internet Port Hardware port to use for Internet traffic.
Bridge Setting to enable network bridge use.
Port Speed

Port speed settings affect how a LAN or WAN port negotiates the speed setting.

Negotiation can be turned off (speed setting: only) or use Autonegotiation (speed setting max) to determine actual speed.

Communication on a port can be either half or full duplex.

A port that is set to disabled does not handle any traffic.

ADSL

The ADSL view allows you to configure ADSL devices.

At the top of the page is a list of selectable devices.

When a particular device is selected, details about it is shown in the configuration section.

Section Description
Name Name of the device.
VPI ATM Virtual Path Identifier.
VCI ATM Virtual Channel Identifier.
DSL Link Type EoA / PPPoE / IPoE.
Encapsulation Mode LLC SNAP / VC-MUX.
Service Type Service Type.
Bridge Setting to enable network bridge use.
Service Type

Service types define the guaranteed level of service in a ATM network. This involves such things as the timing between the source and destination, the guaranteed bandwidth and how many cells get lost in transmission.

Setting Description
UBR without PCR Use Unspecified Bit Rate without Peak Cell Rate.
UBR with PCR Use Unspecified Bit Rate with Peak Cell Rate.
CBR Use Constant Bit Rate.
Non-Realtime VBR Use Non-Real-Time Variable Bit Rate.
Realtime VBR Use Real-Time Variable Bit Rate.

VDSL

The VDSL view allows you to configure VDSL devices.

At the top of the page is a list of selectable devices.

When a particular device is selected, details about it is shown in the configuration section.

Section Description
Name Name of the device.
DSL Latency Path DSL Latency Path 1, 2 or both 1 & 2.
PTM Priority Normal or High PTM Priority .
IP QoS Schedule Algorithm Strict Priority Precedence / Weighted Fair Queuing.
Bridge Setting to enable network bridge use.
Latency Path

The DSL Latency Path comes in three modes: Path 1 (Fast), Path 2 (Interleaved) and Both 1 & 2. Fast is used for applications sensitive to delay. Interleaved suits applications sensitive to errors.

PTM Priority

The PTM Proprity defines how PTM traffic packets should be handled.

Priority Description
Normal Priority Send packets according to their priority.
High Priority Use preemption; lower-priority packets are paused when higher-priority packets are sent.
IP Quality of Service Algorithm

The IP Quality of Service Algorithm determines which type of QoS to provide.

Strict Priority Precedence means that where the the packets with the highest priority always are sent first.

Weighted Fair Queuing means that bandwidth is adjusted automatically according to traffic priority and weight value.

VLAN

The VLAN view allows you to configure VLAN devices.

At the top of the page is a list of selectable devices.

When a particular device is selected, details about it is shown in the configuration section.

Section Description
Name Name of the device.
Base Device Base Device to create interface for.
802.1q 802_1q tag.
802.1p 802_1q priority.
Bridge Setting to enable network bridge use.
802.1q

IEEE 802.1Q is a standard for Ethernet VLANs where VLANs are given a numeric tag. The tag is used to identify traffic in networks, and decide how to handle it.

This allows multiple bridged networks to share the same physical link without leaking information to each other networks.

802.1p

802.1p is a standard for priority levels, identifying the class of service a VLAN is to be used for. There are 8 different levels, numbered from 0 to 7.

Priority Acronym Traffic types Comment
0 BK Background Lowest
1 BE Best Effort
2 EE Excellent Effort
3 CA Critical Applications
4 VI Video < 100 ms latency and jitter
5 VO Voice < 10 ms latency and jitter
6 IC Internetwork Control
7 NC Network Control Highest

XDSL

The xDSL view allows you to configure line settings and profiles.

The xDSL settings are divided into several tabs.

Modulation

The modulation tab lets you turn various line modulations on or off.

→ Read more...

VDSL Profile

The VDSL Profile tab lets you turn various VDSL2 profiles on or off.

→ Read more...

Capabilities

The capabilites tab lets you turn various xDSL capabilites on or off.

→ Read more...

Modulation

The modulation tab lets you turn various line modulations on or off.

Profile Description Down Mbit/s Up Mbit/s
G.Dmt G.Dmt modulation. 12 1.3
G.lite G.lite modulation. 1.5 0.5
T.1413 T.1413 modulation. 8.1 1.5
ADSL2 ADSL2 modulation. 12 1.0
AnnexL AnnexL modulation. 5 0.8
ADSL2+ ADSL2+ modulation. 24 1.0
AnnexM AnnexM modulation. 24 3.5
VDSL2 VDSL2 modulation. 100 100

VDSL Profile

The VDSL Profile tab lets you turn various VDSL2 profiles on or off.

Profile Bandwidth (MHz) Downstream carriers Carrier bandwidth (kHz) Maximum downstream transmit power (dBm) Max. downstream throughput (Mbit/s)
8a 8.832 2048 4.3125 +17.5 50
8b 8.832 2048 4.3125 +20.5 50
8c 8.5 1972 4.3125 +11.5 50
8d 8.832 2048 4.3125 +14.5 50
12a 12 2783 4.3125 +14.5 68
12b 12 2783 4.3125 +14.5 68
17a 17.664 4096 4.3125 +14.5 100

Capabilities

The capabilites tab lets you turn various xDSL capabilites on or off.

Profile Description Comment
US0 Upstream 0 Band. 20 to 138 kHz
Bitswap Bitswap. Used for DMT modulation.
SRA Seamless Rate Adaptation.

Connections

The Connections view allows you configure various connection interfaces to use in your device.

View

This page allows to configure IP addresses used in your home network. In case DHCP is used, your router automatically assignes an IP address to devices connected to the network.

The page contains a list of interfaces, with one widget for each interface.

Connection Buttons

Connect

To turn a connection on:

  • Select the connection you are interested in
  • Click Connect button
Disconnect

To turn a connection off:

  • Select the connection you are interested in
  • Click Disconnect button
Edit

To change the settings for a connection:

  • Select the connection you are interested in
  • Click Edit button

The connection editor is shown below the connection list.

Connection Editor

You can view, manage and configure the settings for interfaces from the connections page.

→ Read more...

Main Buttons

Delete

To change the settings for a connection:

  • Select the connection you are interested in
  • Click Edit button
Add

To add new connection interface:

  • Select the connection you are interested in
  • Click Edit button

The new interface dialog is shown.

Create Connection Wizard

The Create New Network Interface wizard allows you to create a new interface according to your needs through a number of dialogs.

→ Read more...

Create Connection Wizard

The Create New Network Interface wizard allows you to create a new interface according to your needs through a number of dialogs.

Create Connection

The dialog is a wizard where you add information in several steps.

The number of steps and their contents varies depending on the type of interface you create.

Note: As a last step you finalize the setup, but you can further edit the settings from the connections page.

Connection Types

In the first step, you can choose the type of interface: Uplink, Downlink, or Unmanaged.

Depending on your choice in the first step, different options become available.

Unmanaged

The interface protocol type Unmanaged means that the connection has no defined protocol.

Unmanaged

The interface protocol type Unmanaged means that the connection has no defined protocol.

Step 1

In the first step you select basic settings for the interface.

Item Description
Interface Type Select interface type.
Add/Remove Devices Select interface protocol type.
  • Select Interface Type
  • Add as many devices as needed
Add Device
  • Click Add

The Add Device dialog is shown.

  • Select a network device from the dropdown menu
  • Click OK

Finalize

  • Click OK again
  • Click Apply

Connection Editor

You can view, manage and configure the settings for interfaces from the connections page.

Edit Connections

To edit a connection:

  • Click Edit button

The Connection Section is displayed at the bottom of the page.

The connection section consists of a number of tabs, showing details the connection.

Depending on connection type the tabs will be different, but the standard tabs are General, Physical Settings, and Advanced.

Additional tabs become visible as they are needed.

Default Connections
LAN

The default LAN connection is a DHCP v4 connection using a static IPv4 address.

→ Read more...

WAN

The default WAN connection uses an IPv4 address provided by a DHCP server.

→ Read more...

WAN6

The default WAN6 connection is a IPv6 address provided by a DHCP server.

→ Read more...

Connection Types
Unmanaged

An unmanaged connection has no predefined protocol for the connection.

→ Read more...

Static Address

A static address uses a fixed IP address for the connection.

→ Read more...

DHCP v4

An DHCP v4 connection uses an IPv4 address provided by a DHCP server.

→ Read more...

DHCP v6

An DHCP v6 connection uses an IPv6 address provided by a DHCP server.

→ Read more...

Point-to-Point Protocol

A Point-to-Point Protocol connection uses PPP to establish the network.

→ Read more...

Point-to-Point Protocol over Ethernet

A Point-to-Point Protocol over Ethernet connection uses PPPoE to establish the network.

→ Read more...

Point-to-Point Protocol over ATM

A Point-to-Point Protocol over ATM connection uses PPPoA to establish the network.

→ Read more...

3G

A 3G connection uses PPP over GPRS/EVDO/CDMA/UMTS.

→ Read more...

4G

A 4G connection uses 4G interface over LTE / HSPA+.

→ Read more...

Point-to-point Tunnel

A Point-to-Point Tunnel connection uses PPP across a VPN tunnel to establish the network.

→ Read more...

IPv6 Tunnel in IPv4

A IPv6 Tunnel in IPv4 connection uses IPv4 to transmit IPv6 traffic.

→ Read more...

IPv6 Tunnel to IPv4

A IPv6 Tunnel to IPv4 connection uses IPv4 to transmit IPv6 traffic.

→ Read more...

IPv6 rapid deployment

A IPv6 rapid deployment interface for IPv4 infrastructures.

Edit (ade:network:connections:6rd:start)

→ Read more...

Dual-Stack Lite

A Dual-Stack Lite connection uses DS-Lite through an Address Family Transition Router to establish the network.

→ Read more...

Point-to-Point Protocol over L2TP

A Point-to-Point Protocol over L2TP connection uses PPP and L2TP server to establish the network.

→ Read more...

LAN

The default LAN connection is a DHCP v4 connection using a static IPv4 address.

IPv4

Internet Protocol Version 4 - IPv4 - is the first major version of the Internet Protocol.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

DHCP

The DHCP tab allows you to enable and use a specific DHCP server for the connection.

→ Read more...

DHCP

The DHCP tab allows you to enable and use a specific DHCP server for the connection.

View

Item Description
DHCP Server Turn DHCP Server on or off.
DHCP Pool Start Start IP number for the DHCP Pool start number IP address
DHCP Pool Size Number of IP addresses in the DHCP Pool
DHCP Lease Time DHCP Lease Time for the LAN.
Static DHCP Reserve an IP address DHCP Lease for a connected device.
Additional Sections
Advanced

The Advanced section contains advanced DHCP options.

→ Read more...

IPv6 Settings

The DHCP tab allows you to enable and use a specific DHCP server for the connection.

→ Read more...

Static DHCP

The Static DHCP tab lets you add fixed IP address for connected clients.

→ Read more...

Advanced

The Advanced section contains advanced DHCP options.

View

Item Description Comment
DHCP Options DHCP Option ID and value to assign.
Dynamic DHCP Use Dynamic DHCP. If disabled, only clients with static leases will be allowed.
Force Override existing options.

IPv6 Settings

The DHCP tab allows you to enable and use a specific DHCP server for the connection.

View

Item Description Comment
DHCPv6 Service Service handling DHCP services for IPv6. server / relay / disabled
 Router Advertisement Service Service handling Router Advertisement. server / relay / disabled
 NDP-Proxy NDP proxy. relay / none
Values
Value Description
server Provide service.
relay Forward messages.
disabled Turn service off.
none Do not provide this service.

Static DHCP

The Static DHCP tab lets you add fixed IP address for connected clients.

View

Device Name Turn DHCP Server on or off.
MAC Address MAC address.
IP Address IP address.
DUID (IPv6) IPv6 DUID.
Host ID (IPv6) IPv6 Host ID.
Tag Tag with further DHCP Options as configured in the DHCP/DNS settings.

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Protocol

The protocol section contains detailed settings for the connection.

Item Description
Protocol Connection protocol setting.
Interface Type Downlink / Uplink
IPv4

The IPv4 section contains IP configuration.

Item Description
IPv4 Address Device DHCP address
IPv4 Subnet Mask IPv4 Subnet Mask
IPv4 Broadcast Mask IPv4 Broadcast Mask
IPv6

The IPv6 section contains IP configuration.

Item Description Comment
IPv6 Assignment Length Number betwen 48 and 64.
IPv6 Assigned Prefix Hint Hexadecimal number between 1 and FFFF

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Interface type The connection interface type.
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Add/Remove custom DNS Servers

These DNS entries will be applied on the interface

You can add as many custom DNS servers as you like, but they must be unique.

Note: These custom DNS entries only affect the interface where they are added.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save

WAN

The default WAN connection uses an IPv4 address provided by a DHCP server.

IPv4

Internet Protocol Version 4 - IPv4 - is the first major version of the Internet Protocol.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Hostname Hostname to use for DHCP requests.
Create default route Automatically generated routing information.

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Interface type The connection interface type.
Add/Remove Devices Devices to associate with the connection.
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use broadcast flag Add broadcast flag to traffic.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
DHCP Options
Item Description
Additional DHCP options to request from the server DHCP option ID:s for additional options.
Client ID to send when requesting DHCP Custom ID to use for DHCP requests.
Vendor Class to send when requesting DHCP Use for device-specific DHCP options.

WAN6

The default WAN6 connection is a IPv6 address provided by a DHCP server.

IPv6

Internet Protocol Version 6 - IPv6 - is the the successor to IPv4.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Request IPv6 Address Try / Force / None
Request Prefix Length 48 / 52 / 56 / 60 / 64 / Auto / Disabled

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Interface type The connection interface type.
Add/Remove Devices Devices to associate with the connection.
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
DHCP Options
Item Description
Custom delegated IPv6-prefix Prefix for prefix delegation.
Client ID to send when requesting DHCP Custom ID to use for DHCP requests.

Unmanaged

An unmanaged connection has no predefined protocol for the connection.

Unmanaged

The interface protocol type Unmanaged means that the connection has no defined protocol.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Bridge Devices

The bridge devices section lets you add or remove bridged devices to the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.

Static Address

A static address uses a fixed IP address for the connection.

Static address

A static IP address is an address that doesn't change, unless manually changed by the administrator.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

DHCP

The DHCP tab allows you to enable and use a specific DHCP server for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Protocol

The protocol section contains detailed settings for the connection.

Item Description
Protocol Connection protocol setting.
Interface Type Downlink / Uplink
IPv4

The IPv4 section contains IP configuration.

Item Description
IPv4 Address Device DHCP address
IPv4 Subnet Mask IPv4 Subnet Mask
IPv4 Broadcast Mask IPv4 Broadcast Mask
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
IPv6

The IPv6 section contains IP configuration.

Item Description Comment
IPv6 Assignment Length Number betwen 48 and 64.
IPv6 Assigned Prefix Hint Hexadecimal number between 1 and FFFF

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Interface type The connection interface type.
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.

DHCP

The DHCP tab allows you to enable and use a specific DHCP server for the connection.

Basic

Item Description
DHCP Server Turn DHCP Server on or off.
DHCP Pool Start Start IP number for the DHCP Pool start number IP address
DHCP Pool Size Number of IP addresses in the DHCP Pool
DHCP Lease Time DHCP Lease Time for the LAN.
Static DHCP Reserve an IP address DHCP Lease for a connected device.

Advanced

IPv6

DHCP v4

An DHCP v4 connection uses an IPv4 address provided by a DHCP server.

IPv4

Internet Protocol Version 4 - IPv4 - is the first major version of the Internet Protocol.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Hostname Hostname to use for DHCP requests.
Create default route Automatically generated routing information.

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Interface type The connection interface type.
Add/Remove Devices Devices to associate with the connection.
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use broadcast flag Add broadcast flag to traffic.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
DHCP Options
Item Description
Additional DHCP options to request from the server DHCP option ID:s for additional options.
Client ID to send when requesting DHCP Custom ID to use for DHCP requests.
Vendor Class to send when requesting DHCP Use for device-specific DHCP options.

DHCP v6

An DHCP v6 connection uses an IPv6 address provided by a DHCP server.

IPv6

Internet Protocol Version 6 - IPv6 - is the the successor to IPv4.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Request IPv6 Address Try / Force / None
Request Prefix Length 48 / 52 / 56 / 60 / 64 / Auto / Disabled

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Interface type The connection interface type.
Add/Remove Devices Devices to associate with the connection.
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
DHCP Options
Item Description
Custom delegated IPv6-prefix Prefix for prefix delegation.
Client ID to send when requesting DHCP Custom ID to use for DHCP requests.

Point-to-Point Protocol

A Point-to-Point Protocol connection uses PPP to establish the network.

PPP

Point-to-Point Protocol (PPP) is a protocol for providing a direct data link connection with authentication, encryption and compression.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Hostname Hostname to use for DHCP requests.
Create default route Automatically generated routing information.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Enable IPv6 on the PPP link Enables IPv6 connection from the provider.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
LCP Options

The LCP options section contains LCP configuration.

Item Description Comment
LCP echo failure threshold Number of echo failures before peer is considered dead. Use 0 to ignore failures.
LCP echo interval How often to send echo-requests. Used together with failure threshold.
Inactivity timeout Time until inactive connection is closed. Use 0 to persist connection.

Point-to-Point Protocol over Ethernet

A Point-to-Point Protocol over Ethernet connection uses PPPoE to establish the network.

PPPoE

PPP over Ethernet (PPPoE) is a protocol using PPP to provide an DSL Internet connection over Ethernet, by putting PPP frames inside Ethernet frames.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
PAP/CHAP Username For authentication with PAP or CHAP.
PAP/CHAP Password For authentication with PAP or CHAP.

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Enable IPv6 on the PPP link Enables IPv6 connection from the provider.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
LCP Options

The LCP options section contains LCP configuration.

Item Description Comment
LCP echo failure threshold Number of echo failures before peer is considered dead. Use 0 to ignore failures.
LCP echo interval How often to send echo-requests. Used together with failure threshold.
Inactivity timeout Time until inactive connection is closed. Use 0 to persist connection.

Point-to-Point Protocol over ATM

A Point-to-Point Protocol over ATM connection uses PPPoA to establish the network.

PPPoA

PPP over ATM (PPPoA) is a protocol using PPP to provide an DSL Internet connection over ATM.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Hostname Hostname to use for DHCP requests.
Create default route Automatically generated routing information.

Physical Settings

The physical settings tab contains settings for hardware management and devices for the connection.

Section Description
Ethernet Adapter Selector for base device to use for the connection.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Enable IPv6 on the PPP link Enables IPv6 connection from the provider.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
LCP Options

The LCP options section contains LCP configuration.

Item Description Comment
LCP echo failure threshold Number of echo failures before peer is considered dead. Use 0 to ignore failures.
LCP echo interval How often to send echo-requests. Used together with failure threshold.
Inactivity timeout Time until inactive connection is closed. Use 0 to persist connection.

3G

A 3G connection uses PPP over GPRS/EVDO/CDMA/UMTS.

3G

Third-generation wireless telephone technology (3G), is a cellular network for digital mobile data communication for broadband traffic.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Modem device Modem to use for 3G traffic.
Service Type Both UMTS and GPRS / Only UMTS / Only GPRS.
APN Access Point Name.
PIN-Code PIN code for identification.
PAP/CHAP Username For authentication with PAP or CHAP.
PAP/CHAP Password For authentication with PAP or CHAP.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Enable IPv6 on the PPP link Enables IPv6 connection from the provider.
Use default gateway Use default route.
Modem Init timeout Use DHCP DNS server.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
LCP Options

The LCP options section contains LCP configuration.

Item Description Comment
LCP echo failure threshold Number of echo failures before peer is considered dead. Use 0 to ignore failures.
LCP echo interval How often to send echo-requests. Used together with failure threshold.
Inactivity timeout Time until inactive connection is closed. Use 0 to persist connection.

WWAN (LTE/HSPA+)

The WWAN connection uses LTE / HSPA+.

WWAN

A Wireless Wide Area Network (WWAN), is a wireless network that extends over a large geographical distance.

LTE

Long-Term Evolution (LTE) is a standard for high-speed wireless communication for mobile phones and data terminals, based on GSM and UMTS.

HSPA / HSPA+

High Speed Packet Access (HSPA) is an extension of 3G mobile networks utilizing WCDMA.

Evolved High Speed Packet Access (HSPA+) is a furhter improvement on HSPA allowing for higher speeds.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Status

Item Description
Status Connection status.
Device Device in use.
Protocol Protocol in use.

Configuration

Item Description
Protocol Protocol in use.
Modem device Modem to use for 3G traffic.
APN Access Point Name.
PIN-Code PIN code for identification.
Authentication type PAP / CHAP / Both / None .
Username For authentication with PAP or CHAP.
Password For authentication with PAP or CHAP.
Modes Comma-separated list of allowed network modes (all / lte / umts / gsm / cdma / td-scdma).
Delay Seconds to wait before trying to interact with the modem.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.

4G

A 4G connection uses 4G interface over LTE / HSPA+.

4G

Fourth-generation wireless telephone technology (4G), is a cellular network for digital mobile data communication for high-speed broadband.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Modem device Modem to use for 3G traffic.
APN Access Point Name.
PIN-Code PIN code for identification.
PAP/CHAP Username For authentication with PAP or CHAP.
PAP/CHAP Password For authentication with PAP or CHAP.
Hostname to send when requesting DHCP Hostname to include in DHCP requests.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use broadcast flag Add broadcast flag to traffic.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
DHCP Options
Item Description Comment
Client ID to send when requesting DHCP Custom ID to use for DHCP requests.
Vendor Class to send when requesting DHCP Use for device-specific DHCP options.

Point-to-point Tunnel

A Point-to-Point Tunnel connection uses PPP across a VPN tunnel to establish the network.

Point-to-Point Tunneling Protocol

Point-to-Point Tunneling Protocol (PTPT) is a technology for virtual private networks through TCP and a GRE with PPP packets.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
VPN Server Virtual Private Network server.
PAP/CHAP Username For authentication with PAP or CHAP.
PAP/CHAP Password For authentication with PAP or CHAP.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Enable IPv6 on the PPP link Enables IPv6 connection from the provider.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save
LCP Options

The LCP options section contains LCP configuration.

Item Description Comment
LCP echo failure threshold Number of echo failures before peer is considered dead. Use 0 to ignore failures.
LCP echo interval How often to send echo-requests. Used together with failure threshold.
Inactivity timeout Time until inactive connection is closed. Use 0 to persist connection.

IPv6 Tunnel in IPv4

A IPv6 Tunnel in IPv4 connection uses IPv4 to transmit IPv6 traffic.

6in4

6in4 is a method to transmit IPv6 traffic over explicit IPv4 connections.

The traffic is sent over the IPv4 Internet inside IPv4 packets whose IP headers have the IP protocol number set to 41.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Local IPv4 address IPv4 address to use instead of WAN address.
Remote IPv4 address Address to use tunnel broker Point of Presence
Local IPv6 address Endpoint provided by the tunnel broker.
IPv6 routed prefix Prefix to be used by clients.
Dynamic tunnel Dynamic update of endpoint.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use default gateway Use default route.
Use TTL on tunnnel interface Data Time To Live.

IPv6 Tunnel to IPv4

A IPv6 Tunnel to IPv4 connection uses IPv4 to transmit IPv6 traffic.

6to4

6to4 is a method to transmit IPv6 traffic over IPv4 networks without having to configure explicit tunnels.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Local IPv4 address IPv4 address to use instead of WAN address.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use default gateway Use default route.
Use TTL on tunnnel interface Data Time To Live.

IPv6 rapid deployment

A IPv6 rapid deployment interface for IPv4 infrastructures.

Edit (ade:network:connections:6rd:start)

6rd

6rd is a method for IPv6 rapid deployment on Internet Service Provider IPv4 infrastructures, operating within the ISP's network.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
Local IPv4 address IPv4 address to use instead of WAN address.
Remote IPv4 address Address to the relay.
IPv6 prefix Prefix assigned to provider.
IPv6 prefix length no or 48 to 64
IPv4 prefix length Up to 43 bits.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Use default gateway Use default route.
Use TTL on tunnnel interface Data Time To Live.

Dual-Stack Lite

A Dual-Stack Lite connection uses DS-Lite through an Address Family Transition Router to establish the network.

DS-Lite

Dual-Stack Lite (DS-Lite) is a method for sharing of IPv4 addresses by combining IPv4-in-IPv6 and NAT.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
DS-Lite AFTR address Address to Address Family Transition Router.
Local IPv6 address IPv6 address to use instead of WAN address.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Tunnel Link Connection to use as tunnel link.
Use TTL on tunnnel interface Data Time To Live.

Point-to-Point Protocol over L2TP

A Point-to-Point Protocol over L2TP connection uses PPP and L2TP server to establish the network.

PPP

Point-to-Point Protocol (PPP) is a protocol for providing a direct data link connection with authentication, encryption and compression.

L2TP

Layer 2 Tunneling Protocol (L2TP) is a protocol used to support VPNs, where security is provided in the transmitted packages rather than in the tunneling.

General

The general tab contains status information and settings relating to the protocol.

→ Read more...

Advanced

The advanced tab contains settings for management of advanced features for the connection.

→ Read more...

General

The general tab contains status information and settings relating to the protocol.

Item Description
Status Connection status.
Device Device for the connection.
Protocol Protocol in use.
L2TP Server Address to Layer 2 Tunneling Protoco server.
PAP/CHAP Username For authentication with PAP or CHAP.
PAP/CHAP Password For authentication with PAP or CHAP.

Advanced

The advanced tab contains settings for management of advanced features for the connection.

Item Description
Bring up on boot Start the connection when device starts.
Use gateway metric Gateway metric to use.
Override MAC address Enforced MAC address to use.
Override MTU MTU size to use.
Enable IPv6 on the PPP link Enables IPv6 connection from the provider.
Use default gateway Use default route.
Use DNS servers advertised by peer Use DHCP DNS server.
Add/Remove custom DNS Servers

You can add as many custom DNS servers as you like, but they must be unique.

To add a custom DNS server:

  • Click the add button
  • Add the IP numbers to the DNS server
  • Click Save

To remove a custom DNS server:

  • Click the delete button next to the item to delete
  • Click Save

Routes

Static routes are useful if you have several networks accessible from your router and you want to correctly route packets between them.

IPv4 Routes

The IPv4 section lets you add static routes for IPv4.

→ Read more...

IPv6 Routes

The IPv4 section lets you add static routes for IPv4.

→ Read more...

Add Static Route

To add a static route:

  • Click the add button
  • Enter information for the route fields.
  • Click Apply

IPv4 Routes

The IPv4 section lets you add static routes for IPv4.

Item Description
Interface Affected connection for the route.
Target Destination IP address.
Netmask Applicable netmask.
Gateway IP address to the internet gateway.
Metric Route metric.
MTU MTU size to use.
Delete Remove route.

IPv6 Routes

The IPv4 section lets you add static routes for IPv4.

Item Description
Interface Affected connection for the route.
Target Destination IP address.
Gateway IP address to the internet gateway.
Metric Route metric.
MTU MTU size to use.
Delete Remove route.

Firewall

The firewall lets you filter traffic, set up port forwarding or expose particular services to the outside world.

General Settings

The general settings view allows you to turn the firewall on or off.

→ Read more...

Zones

The Zones view lets you can configure firewall zones to group your firewall rules.

→ Read more...

Rules

Firewall rules are more fine grained filtering rules for filtering your traffic.

→ Read more...

Forwarding

Port Forwarding allows remote computers to connect to a specific device within your private network.

→ Read more...

DMZ / Exposed Host

A local network device can be made an Exposed Host. It is placed in the DMZ outside of the firewall, which provides unrestricted Internet access to the network device.

→ Read more...

General Settings

The general settings view allows you to turn the firewall on or off.

Firewall Settings

To enable the firewall:

  • Click Enable Firewall

Zones

The Zones view lets you can configure firewall zones to group your firewall rules.

At the top of the page is a list of selectable zones.

By default this list contains the LAN and WAN zones, which contain default settings for local and Internet traffic.

When a particular interface is selected, details about it is shown in the configuration section.

Zone configuration

Item Description
Name Identifier for the zone.
Default policy Default behavior for various traffic.
Masquerading Enable firewall masquerading.
MSS Clamping MSS Clamping limit.
Allow forward to destination zones Check zones to permit forwarding.
Allow forward from source zones Check zones to permit forwarding.
Zone members Interfaces that are part of the zone.
Default Policy

The default policy setting defines firewall rules that apply unless specific rules override them.

Item Description
Input Incoming traffic from WAN.
Output Outgoing traffic to WAN.
Forward Traffic from LAN to WAN.

The different default policy values determine the firewall behavior, through the firewall actions:

Firewall Action

The firewall action defines how traffic is handled by the firewall.

Item Description
ACCEPT Allow the traffic.
REJECT Refuse the traffic.
DROP Ignore the traffic.
FORWARD Pass the traffic along.
Add Firewall Zone

To add a firewall zone:

  • Click the Add button
  • Enter information in the fields
  • Click Apply

Once the zone has been created, you can use it with your connections.

Add Zone Members

If you have networks/devices set up, you can add them to the zone.

To add a device as a zone member:

  • Click the Add button

The Select network device dialog opens.

  • Open the select network menu
  • Select the device
  • Click OK
  • Click Apply

Rules

Firewall rules are more fine grained filtering rules for filtering your traffic.

At the top of the page is a list of selectable interfaces.

When a particular interface is selected, details about it is shown in the configuration section.

Where applicable, the configuration is divided into separate sections for source and destination zones.

Item Description
Name Identifier for the rule.
Zone Device / Any / LAN / WAN
IP IPv4 / IPv6 address.
MAC MAC address.
Port Port affected.
IP version Any / IPv4 / IPv6
Protocol Protocol affected: (UDP / TCP / ICMP / TCP + UDP / ESP)
Firewall action Firewall action to perform.
Add Firewall Rule

If you have networks/devices set up, you can add them to the zone.

To add a device as a zone member:

  • Click the Add button

The Select network device dialog opens.

  • Open the Select network menu
  • Select the device
  • Click OK
  • Click Apply
Reorder Firewall Rules

The firewall rules are applied in order from top to bottom in the list.

You can rearrange the rules by using the buttons:

Move up
Move down

Default Firewall Rules

A number of sample firewall rules are enabled by default, providing a basic set of filtering for the network.

Rule Purpose
Allow-Ping Permit ping from WAN to device.
Allow-DHCP-Renew Permit traffic from WAN to any zone.
Allow-DHCPv6 Permit IPV6 traffic from WAN to IPV6 device.
Allow-ICMPv6-Forward Permit ICMP traffic from WAN to any zone.
Allow-ICMPv6-Input Permit ICMP traffic from WAN to IPV6 device.

Forwarding

Port Forwarding allows remote computers to connect to a specific device within your private network.

The forwarding list shows information about any configured port forwarding rules.

Item Comment
Name Identifier for the mapping.
Direction zone involved
Dst. IP Address Client IP address.
Protocol Mapping protocol (UDP / TCP / TCP + UDP ).
Public port(s) Public (external) port.
Private port(s) Private (client) port.

Port Mapping Settings

To map incoming connections:

  • Click the add button to open the settings

The port mapping dialog lets you add configuration settings for the mapping.

Ports can be added one by one (80) or as ranges (21:22).

  • Add information:
    • Add a name as identification
    • Add ports:
      • Add public/incoming port(s)
      • Add private/client port(s)
    • Select protocol
  • Click Save
  • Click Close

Your information is saved and is visible in the mapping list.

Add or Edit Port Mapping

The Add or Edit Port Mapping view allows you to add or change port mapping settings.

Item Comment
Rule Name Rule name.
Source Zone Incoming zone.
Destination Zone Destination zone.
Source IP Address Source IP address (for filtering).
Dst. Device Client hostname.
Dst. IP Address Client IP address.
Protocol Mapping protocol (UDP / TCP / TCP + UDP ).
Public port(s) Public (external) port.
Private port(s) Private (client) port.
NAT Loopback Enable NAT Loopback
Protocol

The protocol setting filters traffic by protocol for the port forward.

Protocol Description
TCP + UDP Both TCP and UDP.
TCP TCP only.
UDP UDP only.

Add or Edit Port Mapping

The Add or Edit Port Mapping view allows you to add or change port mapping settings.

Item Comment
Rule Name Rule name.
Source Zone Incoming zone.
Destination Zone Destination zone.
Source IP Address Source IP address (for filtering).
Dst. Device Client hostname.
Dst. IP Address Client IP address.
Protocol Mapping protocol (UDP / TCP / TCP + UDP ).
Public port(s) Public (external) port.
Private port(s) Private (client) port.
NAT Loopback Enable NAT Loopback
Protocol

The protocol setting filters traffic by protocol for the port forward.

Protocol Description
TCP + UDP Both TCP and UDP.
TCP TCP only.
UDP UDP only.

DMZ / Exposed Host

A local network device can be made an Exposed Host. It is placed in the DMZ outside of the firewall, which provides unrestricted Internet access to the network device.

WAN IP Address Public IPv4 and IPv6 address for the DMZ.
Host IPv4 Address IPv4 of device to place in DMZ.
Host IPv6 Address IPv6 of device to place in DMZ.
Select Existing Host Dropmenu to select connected devices.

Add Exposed Host

To allow DMZ/exposed host:

  • Click Enable to enable an exposed host
  • Enter the local IP address to expose
  • Alternatively, click select existing host

Note: You should also configure the DMZ IP address as static DHCP address for your device.

Parental Control

Parental control is used to restrict access to the network for particular devices.

Internet Access Scheduling

Parental control is handled by setting schedules where access is restricted to explicitly named MAC addresses.

Item Description
Weekdays List of days the filter applies.
Start Time Time of day to start filtering.
Stop Time Time of day to stop filtering.
MAC Addresses List of device MAC addresses.
Start and Stop Times

The start time for a rule has to be lower than the end time.

If you want to have a rule that goes over midnight, you need to add two rules, one up until midnight, and one from midnight to when you want the rule to end.

For example:

Rule one: From 21:00 To 23:59 Rule two: From 00:00 To 06:00

A single rule of From 21:00 To 06:00 will not be saved.

Quality Of Service

The Quality Of Service view allows you to configure parameters for Quality of Service through applying groups of classes to interfaces.

Interface views

Interface

The interface tab lets you select interfaces and configure Quality of Service profiles for them.

→ Read more...

Class

The class tab lets you manage QoS classes.

→ Read more...

Classification Group

The Classification Group tab lets you manage groupings of QoS classes.

This is useful when you have multiple interfaces and want to manage classes differently for them.

→ Read more...

Classify

The classify tab lets you configure filtering parameters in order to define types of traffic to include in which Class.

→ Read more...

Workflow

Workflow

In order to use Quality of Service on the traffic for your device, you need to perform a number of configurations.

→ Read more...

1: Class

The classes define how network traffic is to be prioritized and allocated.

There are a number of predefined classes, but you can add your own.

→ Read more...

2: Classify

In order to direct traffic to the correct classes, you need to define classificaton rules in the Classify tab.

→ Read more...

3: Group

With the classes defined, you can add and order them in a class group in the Group tab.

If you have multiple interfaces, and want different QoS settings for them, you can create multiple class groups.

→ Read more...

4: Enable

As a final step, you enable QoS for the desired interface in the Interface tab.

→ Read more...

Workflow

In order to use Quality of Service on the traffic for your device, you need to perform a number of configurations.

Process

Configuration steps

The order of operations involved in configuring QoS is different from the order in which the interface displays the setting tabs. Not all settings are needed in all cases.

1: Class

The classes define how network traffic is to be prioritized and allocated.

There are a number of predefined classes, but you can add your own.

→ Read more...

2: Classify

In order to direct traffic to the correct classes, you need to define classificaton rules in the Classify tab.

→ Read more...

3: Group

With the classes defined, you can add and order them in a class group in the Group tab.

If you have multiple interfaces, and want different QoS settings for them, you can create multiple class groups.

→ Read more...

4: Enable

As a final step, you enable QoS for the desired interface in the Interface tab.

→ Read more...

1: Class

The classes define how network traffic is to be prioritized and allocated.

There are a number of predefined classes, but you can add your own.

Predefined Classes

Class

There are a number of predefined classes QoS classes. Each class is a set of definitions for a token bucket.

Default Settings

The predefined classes can be edited and all values changed, but they have default settings that should be suitable in normal cases.

Priority

The priority class is an upstream class for high priority traffic such as handshaking and ICMP packets.

Item Description Default Value
Priority Bandwidth allocation limit (%). 20
Average Rate Average target rate (%). 10
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 400
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Priority_down

The Priority_down class is an downstream class for high priority traffic.

Item Description Default Value
Priority Bandwidth allocation limit (%). 1
Average Rate Average target rate (%). 10
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1000
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Express

The Express class is for interactive applications that require bandwidth above standard services so that interactive apps run smoothly.

Item Description Default Value
Priority Bandwidth allocation limit (%). 10
Average Rate Average target rate (%). 50
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1000
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Normal

The Normal Class is the standard upstream class for all services.

This class will apply to all services not otherwise defined.

Item Description Default Value
Priority Bandwidth allocation limit (%). 5
Average Rate Average target rate (%). 10
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1500
Packet Delay Target delay for packets (ms). 100
Max Size Maximum size of packets (bytes). 1000
Normal_down

The Normal_down class is the standard downstream class for all services.

This class will apply to all services not otherwise defined.

Item Description Default Value
Priority Bandwidth allocation limit (%). 1
Average Rate Average target rate (%). 20
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1500
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Bulk

The bulk class is suitable for very low priority traffic. It will be allocated available bandwidth if other classes are idle. When other classes are active, it will be allocated bandwidth according to the priority setting.

It is suitable for transfer services such as (P2P and FTP).

Item Description Default Value
Priority Bandwidth allocation limit (%). 1
Average Rate Average target rate (%). 1
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1500
Packet Delay Target delay for packets (ms). 200
Max Size Maximum size of packets (bytes). 1000

Tab

Class

The class tab lets you manage QoS classes.

Overview

At the top of the page is a list of selectable classes.

When a particular class is selected, details about it is shown in the configuration section.

Item Description Comment
Priority Bandwidth allocation limit (%).
Average Rate Average target rate (%).
Limit Rate Maximum allowed bandwidth (%).
Packet Size Size of packets (bytes). See note.
Packet Delay Target delay for packets (ms). See note.
Max Size Maximum size of packets (bytes).

Note: Packet Size and Packet Delay rely on the Average Rate setting. The average rate is impacted by the maximum packet delay and the transfer time for the packet size. Generally the delay is lower for smaller packet sizes.

Add Class

You can add as many classes as you like.

To add a class:

  • Click the Add button
  • Enter a Name for the class
  • Enter QoS values as needed.
  • Click Apply

Configuration Values

Priority

The Priority indicates the bandwidth allocation limit as a percentage of total available bandwidth.

ls m2 = priority / sum (priority) * max_bandwidth
Limit Rate

The Limit Rate provides a maximum allowed bandwidth, expressed as a percentage of the total available bandwidth.

ul rate = limitrate * max_bandwidth / 100
Average Rate

The Average target rate is a percentage of the total available bandwidth.

Average rate for this class, value in % of bandwidth (this value uses for calculate vaues

'Nx' of  'tc … hfsc rt m1 N1 d N2 m2 N3'

Note: Packet Size and Packet Delay rely on the Average Rate setting. The average rate is impacted by the maximum packet delay and the transfer time for the packet size. Generally the delay is lower for smaller packet sizes.

Packet Size

Size of packets (bytes).

packetsize & packetdelay: (only works if avgrate is present)

rt d = max( packetdelay, 'time required for packetsize to transfer')
ls d = rt d
Packet Delay

Target delay for packets (ms).

Max Size

The maximum size of packets indicates the maximum packet size in iptables.

2: Classify

In order to direct traffic to the correct classes, you need to define classificaton rules in the Classify tab.

Tab

Classify

The classify tab lets you configure filtering parameters in order to define types of traffic to include in which Class.

Overview

At the top of the page is a list of selectable classification groups.

When a particular group is selected, details about it is shown in the configuration section.

Adding a parameter will filter out traffic according to the parameters and assign it to the group.

Item Description
Target Group to assign.
Protocol Protocol affected (All / UDP / TCP / ICMP).
Source Host (All / Specific host).
Destination Host (All / Specific host).
Ports Included ports anywhere .
Source Ports Included ports in source.
Destination Ports Included ports in destination.
Port Range Range of ports anywhere.
Precedence Precedence.
Packet Size Size of packets to match.
Direction (Both / In / Out)
Mark Hexadecimal mark code to att to the packets. (0x000000-0xFFFFFF)
Connbytes Connection Bytes for when to start filtering.
TCP flags TCP Flags to match.
Add Filter

To add a filter:

  • Click the Add button
  • Select Classification group
  • Enter QoS values as needed.
  • Click Apply
Reorder

The filters are prioritized in order from top to bottom in the list.

You can rearrange the classes by using the buttons:

Move up
Move down

3: Group

With the classes defined, you can add and order them in a class group in the Group tab.

If you have multiple interfaces, and want different QoS settings for them, you can create multiple class groups.

Tab

Classification Group

The Classification Group tab lets you manage groupings of QoS classes.

This is useful when you have multiple interfaces and want to manage classes differently for them.

Overview

At the top of the page is a list of selectable classification groups.

When a particular group is selected, details about it is shown in the configuration section.

Item Description Comment
Default Class Class to use as fallback if packets don't match any other class.
Classes Classes to include in the group. Note: You need to create a class for it to be available in the list.

The Default Classgroup contains these standard classes: - Priority - Express - Normal - Bulk

Add Classification Group

To add a class group:

  • Click the Add button
  • Enter a Name for the group
  • Select Default group
  • Add classes as needed:
    • Click Add a new class
    • Select the desired class from the list
  • Click Apply

4: Enable

As a final step, you enable QoS for the desired interface in the Interface tab.

Tab

Interface

The interface tab lets you select interfaces and configure Quality of Service profiles for them.

Overview

At the top of the page is a list of selectable interfaces.

When a particular interface is selected, details about it is shown in the configuration section.

Item Description
Enable QoS Turn the Quality of Service on for the interface.
Classification Group Classification group to use for the interface. Note: You need to create the group for it to be available in the list.
Calculate Overhead Include overhead in the packet calculations for shaping and policing.
Limit Download Speed Restrict the network speed to clients.
Limit Upload Speed Restrict the network speed from clients.
Add Interface

To add an interface:

  • Click the Add button

The interface dialog opens.

  • Select an Interface from the list
  • Click OK
  • Enable other settings as needed:
    • Turn QoS on with the Enable QoS slider
    • Select an available Classification Group
    • Turn QoS on with the Limit Download Speed slider
      • Enter a speed value (kbps)
    • Turn QoS on with the Limit Upload Speed slider
      • Enter a speed value (kbps)
  • Click Apply

Class

The class tab lets you manage QoS classes.

Overview

At the top of the page is a list of selectable classes.

When a particular class is selected, details about it is shown in the configuration section.

Item Description Comment
Priority Bandwidth allocation limit (%).
Average Rate Average target rate (%).
Limit Rate Maximum allowed bandwidth (%).
Packet Size Size of packets (bytes). See note.
Packet Delay Target delay for packets (ms). See note.
Max Size Maximum size of packets (bytes).

Note: Packet Size and Packet Delay rely on the Average Rate setting. The average rate is impacted by the maximum packet delay and the transfer time for the packet size. Generally the delay is lower for smaller packet sizes.

Add Class

You can add as many classes as you like.

To add a class:

  • Click the Add button
  • Enter a Name for the class
  • Enter QoS values as needed.
  • Click Apply

Class

There are a number of predefined classes QoS classes. Each class is a set of definitions for a token bucket.

Default Settings

The predefined classes can be edited and all values changed, but they have default settings that should be suitable in normal cases.

Priority

The priority class is an upstream class for high priority traffic such as handshaking and ICMP packets.

Item Description Default Value
Priority Bandwidth allocation limit (%). 20
Average Rate Average target rate (%). 10
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 400
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Priority_down

The Priority_down class is an downstream class for high priority traffic.

Item Description Default Value
Priority Bandwidth allocation limit (%). 1
Average Rate Average target rate (%). 10
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1000
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Express

The Express class is for interactive applications that require bandwidth above standard services so that interactive apps run smoothly.

Item Description Default Value
Priority Bandwidth allocation limit (%). 10
Average Rate Average target rate (%). 50
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1000
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Normal

The Normal Class is the standard upstream class for all services.

This class will apply to all services not otherwise defined.

Item Description Default Value
Priority Bandwidth allocation limit (%). 5
Average Rate Average target rate (%). 10
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1500
Packet Delay Target delay for packets (ms). 100
Max Size Maximum size of packets (bytes). 1000
Normal_down

The Normal_down class is the standard downstream class for all services.

This class will apply to all services not otherwise defined.

Item Description Default Value
Priority Bandwidth allocation limit (%). 1
Average Rate Average target rate (%). 20
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1500
Packet Delay Target delay for packets (ms). 0
Max Size Maximum size of packets (bytes). 1000
Bulk

The bulk class is suitable for very low priority traffic. It will be allocated available bandwidth if other classes are idle. When other classes are active, it will be allocated bandwidth according to the priority setting.

It is suitable for transfer services such as (P2P and FTP).

Item Description Default Value
Priority Bandwidth allocation limit (%). 1
Average Rate Average target rate (%). 1
Limit Rate Maximum allowed bandwidth (%). 100
Packet Size Size of packets (bytes). 1500
Packet Delay Target delay for packets (ms). 200
Max Size Maximum size of packets (bytes). 1000

Interface

The interface tab lets you select interfaces and configure Quality of Service profiles for them.

Overview

At the top of the page is a list of selectable interfaces.

When a particular interface is selected, details about it is shown in the configuration section.

Item Description
Enable QoS Turn the Quality of Service on for the interface.
Classification Group Classification group to use for the interface. Note: You need to create the group for it to be available in the list.
Calculate Overhead Include overhead in the packet calculations for shaping and policing.
Limit Download Speed Restrict the network speed to clients.
Limit Upload Speed Restrict the network speed from clients.
Add Interface

To add an interface:

  • Click the Add button

The interface dialog opens.

  • Select an Interface from the list
  • Click OK
  • Enable other settings as needed:
    • Turn QoS on with the Enable QoS slider
    • Select an available Classification Group
    • Turn QoS on with the Limit Download Speed slider
      • Enter a speed value (kbps)
    • Turn QoS on with the Limit Upload Speed slider
      • Enter a speed value (kbps)
  • Click Apply

Classification Group

The Classification Group tab lets you manage groupings of QoS classes.

This is useful when you have multiple interfaces and want to manage classes differently for them.

Overview

At the top of the page is a list of selectable classification groups.

When a particular group is selected, details about it is shown in the configuration section.

Item Description Comment
Default Class Class to use as fallback if packets don't match any other class.
Classes Classes to include in the group. Note: You need to create a class for it to be available in the list.

The Default Classgroup contains these standard classes: - Priority - Express - Normal - Bulk

Add Classification Group

To add a class group:

  • Click the Add button
  • Enter a Name for the group
  • Select Default group
  • Add classes as needed:
    • Click Add a new class
    • Select the desired class from the list
  • Click Apply

Classify

The classify tab lets you configure filtering parameters in order to define types of traffic to include in which Class.

Overview

At the top of the page is a list of selectable classification groups.

When a particular group is selected, details about it is shown in the configuration section.

Adding a parameter will filter out traffic according to the parameters and assign it to the group.

Item Description
Target Group to assign.
Protocol Protocol affected (All / UDP / TCP / ICMP).
Source Host (All / Specific host).
Destination Host (All / Specific host).
Ports Included ports anywhere .
Source Ports Included ports in source.
Destination Ports Included ports in destination.
Port Range Range of ports anywhere.
Precedence Precedence.
Packet Size Size of packets to match.
Direction (Both / In / Out)
Mark Hexadecimal mark code to att to the packets. (0x000000-0xFFFFFF)
Connbytes Connection Bytes for when to start filtering.
TCP flags TCP Flags to match.
Add Filter

To add a filter:

  • Click the Add button
  • Select Classification group
  • Enter QoS values as needed.
  • Click Apply
Reorder

The filters are prioritized in order from top to bottom in the list.

You can rearrange the classes by using the buttons:

Move up
Move down

MultiWAN

The MultiWAN view allows you to create and configure WAN traffic divisions for load balancing and failover and apply traffic rules.

The MultiWAN settings are divided into tabs.

MultiWAN Settings

The MultiWAN Settings tab allows you to turn MultiWAN feature on or off, and configure Mutiple WAN connections.

→ Read more...

Traffic Rules

The Traffic Rules tab allows you to filter LAN traffic and assign it to the appropriate WAN.

→ Read more...

MultiWAN Options

Some aspects of MultiWan configuration require a bit of thinking and decisions.

→ Read more...

MultiWAN Settings

The MultiWAN Settings tab allows you to turn MultiWAN feature on or off, and configure Mutiple WAN connections.

Below the general settings is a list of selectable WANs.

When a particular WAN is selected, details about it is shown in the configuration section.

Item Description
Load Balancer Distribution Disable / 1-10 (only used in balancer mode.
Health Monitor Method Ping / Statistics.
Health Monitor Interval Time between health checks.
Health Monitor ICMP Host(s) ICMP host.
Health Monitor ICMP Timeout ICMP timeout.
Attempts Before WAN Failover Number of connection attempts before switching to failover WAN.
Attempts Before WAN Recovery Number of connection attempts before attempting to recover WAN.
Failover Traffic Destination Destination for traffic in case of failover. (Fast/ Load).
DNS Server(s) Specified DNS / Automatic Selection / Customized DNS
Add WAN

You can add as many WANS as you have WAN connections.

To add a WAN:

  • Click the Add button
  • Select an available WAN

A new WAN is added to the list.

  • Edit the parameters as needed.
  • Click Apply
Add Custom DNS Servers

To add a custom DNS server:

  • Open the DNS Server(s) dropdown menu
  • Select Custom

Click the add button

  • Add the IP numbers to the DNS server
  • Click Save

Traffic Rules

The Traffic Rules tab allows you to filter LAN traffic and assign it to the appropriate WAN.

At the top of the page is a list of rules.

When a particular rule is selected, details about it is shown in the configuration section.

Item Description
Source Address Originating device.
Destination Address External target address.
Protocol Protocol affected: (UDP / TCP / ICMP
Ports Port
WAN Uplink Target WAN or balancing option.
Add Rule

You can add as many rules as you like.

To add a rule:

  • Click the Add button

A new rule is added to the list.

  • Edit the parameters as needed.
  • Click Apply

MultiWAN Options

Some aspects of MultiWan configuration require a bit of thinking and decisions.

Sample Configurations

Example configurations for failover and balancer are available from the OpenWRT site

Load Balancer Weights

You can add any number of servers to a server load balancing action. You can also add a weight to each server to make sure that your most powerful servers are given the heaviest load.

The weight refers to the proportion of load that the XTM device sends to a server. By default, each server has a weight of 1.

If you assign a weight of 2 to a server, you double the number of sessions that the XTM device sends to that server, compared to a server with a weight of 1.

Load Balancing Interfaces

If an interface is not specified for some particular traffic - and metric and weight are the same - the default behavior is to use both interfaces, which is the Linux default load sharing mechanism.

Interface Selection

When selecting which interface weights you need to take into account how the operator handles traffic. For example, usually a fiber or DSL WAN connection should have higher weight than a mobile connection.

Health Monitor Ping / Statistics

-Health Monitor Method Ping / Statistics. Ping I understand. What kind of statistics are used? Where can one configure statistcs limits? E.g if you monitor like wan stats when does the box determine that interface has failed ? No stats at all at some interval? Some stats in some interval but it doesn’t trigger wan failover because…..?

Ping and Statistics are health monitor methods.

Statistics checks the rx bytes value with the Health Monitor Interval, and if the value has not changed it marks the link as unhealthy.

Failover Traffic Destination

Failover is used when the original link is not available. It is needed both when using a specified interface or when using a balancing mechanism.

When selecting the Failover Traffic Destination, you can choose between Load Balancer, Fast Balancer or using a specific interface. Fast balancer uses netfilter iptables and load balancer uses iproute2.

Services

The Services view allows you to configure the services connected device.

Printer Server

The Printer Server Settings view allows you to change different features about your printer server for connected printers.

→ Read more...

MiniDLNA

The MiniDLNA view lets you configure the MiniDLNA server.

→ Read more...

UPnP

The UPNP view allows you to configure UPNP services.

→ Read more...

DDNS

The DDNS view allows you configure Dynamic DNS services for your device.

→ Read more...

IPTV

The IPTV view lets you configure the IPTV server.

→ Read more...

DHCP

The DHCP view lets you configure the DHCP server settings.

→ Read more...

SNMP

The SNMP Configuration view lets you configure the Simple Network Management Protocol service.

→ Read more...

Samba

In the Samba view you can change settings for the Sambaserver.

→ Read more...

Printer Server

The Printer Server Settings view allows you to change different features about your printer server for connected printers.

Item Comment
Enable Turn printer server on or off.
Interface Interface to listen on
Port Port to listen on.
Bidirectional mode Allow printer to communicate with client.

MiniDLNA

The MiniDLNA view lets you configure the MiniDLNA server.

Status

At the top of the page is a status window that can be expanded to display the current MiniDLNA status.

→ Read more...

General

In the General settings tab you can change different general features about your MiniDLNA server.

→ Read more...

Advanced

In the Advanced tab you can change different advanced features about your media server.

→ Read more...

Status

At the top of the page is a status window that can be expanded to display the current MiniDLNA status.

Show Status

To view the status window, click the expand icon.

Media Library

In the media library table, the number of audio, video and image files on the server is shown.

Connected Clients

The Connected Clients table displays information about possible clients and their connections to the server.

Column Description
ID Client ID.
Type Type of client (as identified by the client).
IP Address IPv4 IP address for the client.
HW Address MAC address for the client.
Connections Number of connections to this client.

General

In the General settings tab you can change different general features about your MiniDLNA server.

Item Comment
Port Port for HTTP traffic.
Network List of interfaces to serve.
Friendly Name Name to display to clients.
Root Container Start point when browsing.
Media Directories File system locations for media.
Album-Art Names List of file names for album art.

Advanced

In the Advanced tab you can change different advanced features about your media server.

Item Comment
Database directory Directory for database and cache storage.
Log directory Directory to store logs.
Enable inotify Turn Inotify on or off.
Enable TIVO Support for streaming files to TiVo.
Strict to DLNA standard Only use DLNA standard features.
Presentation URL Default presentation URL.
Notify interval Time between notification messages.
Announced serial number Serial number to show to clients.
Announced model number Model number to report to clients.
miniSSDP socket Path to miniSSDPd socket for SSDP.

UPnP

The UPNP view allows you to configure UPNP services.

At the top of the page is a list of currently open UPnP ports, if any.

The UPnP settings are divided into tabs.

General

The General tab allows you to enable and configure the service parameters.

→ Read more...

Advanced

The Advanced tab lets you configure advanced UPNP settings.

→ Read more...

ACL

The ACL tab lets you configure the Access Control List for UPNP access.

→ Read more...

General

The General tab allows you to enable and configure the service parameters.

Automatically Start Service At Bootup Enable upnp daemon at boot time
Start / Stop Service Start/stop upnp daemon.
Enable UPNP Enable UPNP protocol
Enable NAT-PMP Enable NAT-PMP protocol.
Enable secure mode Only add forwards to requesting ip addresses.
Enable additional logging Aadd extra debugging information to the system log.
Downlink Nominal uplink speed (KByte/s).
Uplink Nominal downlink speed (KByte/s).
Port Port for the service.
External Interface Interface for external access.
Internal Interface Interface to use for local access.

Advanced

The Advanced tab lets you configure advanced UPNP settings.

Device UUID UUID
Announced serial number Serial number to show to clients.
Announced model number Model number to show to clients.
Notify interval Time between notification messages.
Clean rules threshold Number of rules to keep.
Clean rules interval Time between cleaning of UPnP rules.
Presentation URL Location for service control web interface.
UPnP lease file Location for file containing leases.

ACL

The ACL tab lets you configure the Access Control List for UPNP access.

Item Description
Comment Description of the rule.
External ports External ports to filter.
Internal addresses Internal addresses to filter.
Internal ports Internal ports to filter.
Action Allow / Deny
Sort Change order of list items.

DDNS

The DDNS view allows you configure Dynamic DNS services for your device.

At the top of the page is a list of selectable services.

When a particular service is selected, details about it is shown in the connection section.

Item Description
Enabled Turn service on or off.
Label Identifier in the service list.
IP Retrieval Method Interface / Network / Script / Web.
Select Interface For Interface: Interface.
Select Connection For Network: Connection.
Script Path For Script: Local path to IP detection script.
Enter website to poll for ip address For Web: Address to IP detection service.
Provider Service provider list.
Enter DDNS Provider Manually add service provider.
Domain name Full hostname to use for the device.
Username Service account username.
Password Service account password.
Use HTTPS USe secure communication with service.
DDNS Services

You can add as many DDNS Services as you like.

To add a DDNS Service:

  • Click the add button

A new service is added to the list.

  • Edit the parameters as needed.
  • Click Apply

IPTV

The IPTV view lets you configure the IPTV server.

Item Description
Differentiated Services Code Point DSCP to use for tagging outgoing IGMP packets.
Proxy interface Interface to use as proxy.
Default version IGMP version.
Query interval Time between IGMP query messages.
Query response interval Time to wait for response to query beofre timeout.
Last member query interval Time between queries to determine the loss of the last member in an IGMP group.
Robustness value Tolerance for lost packets.
LAN to LAN multicast Allow multicast between LANs.
Max groups Maximum allowed multicastgroups.
Max sources Maximum allowed multicast sources.
Max members Maximum allowed members in a multicast group.
Fast leave Leave multicast groups immediately after the last host.
Join immediate Join group directly.
Enable IGMP proxy Turn on IGMP Proxy handling.
Ignore SSM Range Ignore SSM and deliver regular multicasting.
IGMP snooping mode IGMP snooping mode: Disabled / Standard / Blocking.
IGMP snooping interfaces Interfaces to use for IGMP snooping.

DHCP

The DHCP view lets you configure the DHCP server settings.

The DHCP settings are divided into several tabs.

General

The General tab allows you to configure the DHCP server basic settings.

→ Read more...

Advanced

The Advanced tab allows you to configure advanced settings for the DHCP server.

→ Read more...

Hostnames

The Hostname tab allows you to configure hostnames for IPv4 or IPV6 addresses in the LAN.

→ Read more...

Classifications

The Classifications tab lets you add classifications for connected clients.

The classifications can be used to provide specific DHCP Options options for the classified clients, based on client parameters.

→ Read more...

DNS Tags

The DNS Tags tab allows you to add DNS tags containing DHCP options. These tags can be used when configuring interfaces.

→ Read more...

General

The General tab allows you to configure the DHCP server basic settings.

Item Description
Local domain Local domain suffix appended to DHCP names and hosts file entries.
Log queries Write received DNS requests to system log.
Leasefile file where given DHCP leases will be stored.
Ignore resolve file Do not use the local Resolve file.
Resolve file Local DNS file storage.
Ignore Hosts file Do not use the local Hosts file. .
Hostname Entries file(s) Path to additional host files to read for serving DNS responses.

Advanced

The Advanced tab allows you to configure advanced settings for the DHCP server.

Item Description
Domain required Do not forward DHCP-requests without DHCP-Name.
Authoritative This is the only DHCP in the local network.
Filter private Do not forward reverse lookups for local networks.
Filter useless Do not forward requests that cannot be answered by public name servers.
Localise queries Localise hostname depending on the requesting subnet if multiple IPs are available.
Local server Domain resolved from DHCP or hosts files only.
Expand hosts Add local domain suffix to names served from hosts files.
No negative cache Do not cache negative replies.
Strict order DHCP servers will be queried in the order of the resolvfile.
Bogus NX Domain Override List of hosts that do not supply non-existent domain (NXDOMAIN) results.
DHCP forwarding List of DHCP servers to forward requests to.
Rebind protection Discard upstream RFC1918 responses.
Allow localhost Allow upstream responses in the 127.0.0.0/8 range.
Domain whitelist List of domains to allow RFC1918 responses to.
DHCP server port Listening port for inbound DHCP queries.
DHCP query port Fixed source port for outbound DHCP queries.
Max DHCP leases Maximum allowed number of active DHCP leases.
Max. EDNS0 packet size Maximum size of EDNS0 UDP packets.
Max. concurrent queries Maximum number of concurrent DHCP queries.

Classifications

The Classifications tab lets you add classifications for connected clients.

The classifications can be used to provide specific DHCP Options options for the classified clients, based on client parameters.

Parameters

The classification can be based on client parameters:

View

At the top of the page is a list of configured classifications.

When a particular account is selected, details about it is shown in the configuration section.

For all classification types, the configuration is similar:

Item Description
Parameter value Value for the classification parameter, according to its type.
Network ID Option value.
ID DHCP option ID.
Option Option value.
Add Tag

You can add as many tags as you like.

To add a tag:

  • Click the Add button

The Select type of Classification dialog opens:

  • Pick a Select Classification Type from the dropdown menu
  • Click Apply

The tag is added to the list.

  • Click the Edit button
    • Enter Parameter value according to Classification Type
  • Add as many DHCP options as needed:
    • Click the Add option button
    • Select the ID value
    • Enter Option value
  • Click Apply

DNS Tags

The DNS Tags tab allows you to add DNS tags containing DHCP options. These tags can be used when configuring interfaces.

View

At the top of the page is a list of configured tags.

When a particular tag is selected, details about it is shown in the configuration section.

Item Description
ID DHCP option ID.
Option Option value.
Add Tag

You can add as many tags as you like.

To add a tag:

  • Click the Add button

The Add New Tag dialog opens:

  • Enter a Tag Name

The tag is added to the list

  • Click the Edit button
  • Add as many options as needed:
    • Click the Add option button
    • Select the ID value
    • Enter Option value
  • Click Apply

Hostnames

The Hostname tab allows you to configure hostnames for IPv4 or IPV6 addresses in the LAN.

Item Description
Hostname List of hostnames.
Family Type of IP address (IPv4 or IPv6).
Address IPv4 or IPv6 address.
Add Hostname Entry

You can add as many entries as you like, and each entry can have any number of hostnames for each IP address.

To add a hostname entry:

  • Click the Add button
  • Enter hostnames in the Hostname field
  • Select address Family
  • Enter IP Adress to redirect to
  • Click Apply

SNMP

The SNMP Configuration view lets you configure the Simple Network Management Protocol service.

The SNMP settings are divided into tabs.

System

The System tab lets you configure general information about the SNMP service.

→ Read more...

Agent

The Agent tab allows you to manage SNMP agents.

→ Read more...

Com2Sec

The Com2Sec tab lets you configure Com2Sec access profiles for the SNMP service.

→ Read more...

Group

The Group tab allows you to configure Com2Sec access groups for the SNMP service.

→ Read more...

View

The View tab lets you configure Com2Sec views for the SNMP service.

→ Read more...

Access

The Access tab allows you to configure Com2Sec access directives for the SNMP service.

→ Read more...

Pass

The Pass tab lets you configure Com2Sec passthrough for MIBs the SNMP service.

→ Read more...

System

The System tab lets you configure general information about the SNMP service.

Item Description
Location Physical location of the device.
Contact Contact information for the responsible person.
Name Name of the server.
Services Offered services.
Description Server description for presentation.
Object ID Identifier for the device.

Agent

The Agent tab allows you to manage SNMP agents.

Item Description
Agent Address Protocol and port for the agent variable.
Add Agent

You can add as many agents as you like.

To add an agent:

  • Click the Add button
  • Enter an Agent Address
  • Click Apply

Com2Sec

The Com2Sec tab lets you configure Com2Sec access profiles for the SNMP service.

Item Description Example
Community Community group to access. private
Source Hostname or subnet. localhost
SecName Access string. rw
Add Profile

You can add as many profiles as you like.

To add a profile:

  • Click the Add button
  • Enter parameters as needed
  • Click Apply

Group

The Group tab allows you to configure Com2Sec access groups for the SNMP service.

Item Description Example
Community Community group to access. public
Source Hostname or subnet. usm
SecName Access string. ro
Add Group

You can add as many groups as you like.

To add a group:

  • Click the Add button
  • Enter parameters as needed
  • Click Apply

View

The View tab lets you configure Com2Sec views for the SNMP service.

Item Description
View Name Name of the view.
Type Type of view.
OID Object ID
Mask Netmask.
Add View

You can add as many views as you like.

To add a view:

  • Click the Add button
  • Enter parameters as needed
  • Click Apply

Access

The Access tab allows you to configure Com2Sec access directives for the SNMP service.

The access directive maps from group/security model/security level to a view.

Item Description Example
Group Group.
Context Security name or empty.
Version Version access. any / v1 / v2c / usm
Level Access level. noauth / auth / priv
Prefix Context matching. exact / prefix
Read Read permissions
Write Write permissions
Notify Notify permissions.
Add Access Group

You can add as many acces groups as you like.

To add a n accwess group:

  • Click the Add button
  • Enter parameters as needed
  • Click Apply

Pass

The Pass tab lets you configure Com2Sec passthrough for MIBs the SNMP service.

Item Description
Persist Enable permanent passthrough.
Priority Passthrough priority.
MIB OID Object ID for the MIB.
Program Execution for the arguments.
Add Passthrough

You can add as many passthroughs as you like.

To add a passthrough:

  • Click the Add button
  • Enter parameters as needed
  • Click Apply

Samba

In the Samba view you can change settings for the Sambaserver.

The Samba settings are divided into sections.

General

The General section of the view allows you to change the general Samba settings, such as name, workgroup and interface.

→ Read more...

Samba Users

The Samba Users section of the view allows you to change the user settings.

→ Read more...

Samba Shares

The Samba Shares section lets you configure Samba shares and user access.

→ Read more...

General

The General section of the view allows you to change the general Samba settings, such as name, workgroup and interface.

Option Description
Name Service identifier.
Workgroup Service workgroup.
Description Description of the service.
Interface Interfaces to provide the service to.

Change Interface Settings

To change the interface that Samba will listen on:

  • Click LAN to open the list
  • Choose as many interfaces as needed
  • Click outside of the list
  • Click Apply

Samba Users

The Samba Users section of the view allows you to change the user settings.

Option Description
Username user name
Password password
Description description

Samba User Settings

To add a Samba user:

  • Click Add
  • Edit the parameters as needed.
  • Click Apply

Samba Shares

The Samba Shares section lets you configure Samba shares and user access.

Option Description
Name Share identifier.
Path Path to the shared directory.
Allowed users Users with access.
Allow guest access Turn public access on or off.
Read only? Turn write protection on or off.

Add Samba Share

To add a Samba Share:

  • Click Add
  • Enter a Name
  • Click Add

The Add folder to share dialog opens.

  • Browse to the directory you want to share and select it
  • Click Apply
  • Add Samba Users
  • Select Guest Access setting
  • Select Read Only setting
  • Click Apply

Add Users To Share

To add a Samba users:

  • Click Add
  • Click Allowed Users to open the list
  • Choose as many users as needed
  • Click outside of the list
  • Click Apply

WIFI

The WiFi view shows you information about your wireless network.

General

In the General WiFi view you can view and edit the wireless interface.

→ Read more...

Band Steering

The Band Steering view allows you to enable and configure band steering for the device.

→ Read more...

WPS Settings

The WPS Settings view lets you change the default wireless security settings (WPS) to make your network more secure.

→ Read more...

MAC Filter

In the MAC Filter view you can make your wireless network more secure. Just specify which devices are allowed to connect, or explicitly lock out devices.

→ Read more...

General

In the General WiFi view you can view and edit the wireless interface.

Radios

The Wireless Radios view allows you to configure wireless radios installed on your system.

→ Read more...

Wireless

In the Wireless view you can view and edit the wireless interfaces.

Each radio can have up to 4 SSIDs.

→ Read more...

Radios

The Wireless Radios view allows you to configure wireless radios installed on your system.

At the top of the page is a list of radios.

Clicking the Edit buttin will open the edit view for that radio.

Item Comment
Radio On/off Turn radio on or off.
WiFi Mode (SSID) Choose wifi mode.
Channel Choose WiFi Channel.
Bandwidth Choose bandwidth.
Scan Timer Determine the dwell time for channel hopping.
DFS Channels Turn DFS channels on or off.
Beamforming Turn beamforming on or off.
 Airtime Fairness Turn ATF on or off.
Maximum Associated Stations Maximum number of clients allowed.
RX Chain PowerSave Quiet Time Turn RXC PS Quiet Time on or off.
RX Chain PowerSave PPS Turn RXC PS PPS on or off one of the receive chains to save power.
Enable WMM Multimedia Extensions Turn WMM multimedia extensions on or off.
Disable WMM Ack Turn WMM acknowledgement on or off.
Enable WMM UAPSD Power Saving Turn WMM UAPSD power saving on or off.

Wireless

In the Wireless view you can view and edit the wireless interfaces.

Each radio can have up to 4 SSIDs.

At the top of the page is a list of selectable interfaces.

When a interface is selected, the edit view for the interface is shown below.

Item Comment
Enabled Turn on or off.
WiFi Network Name Edit name of SSID network.
Broadcast SSID Toggle to make network visible or invisible.
Wireless Multicast Forwarding Toggle to turn multicast forwarding on or off.
Maximum Number of Connected Clients Maximum number of connected clients.
Encryption Change to a different encryption method.
Cipher Choose form of Cipher.
WiFi Key (Password) Reset to default password.
Show Key Text Change format of wifi key text.

Add Wireless Interface

  • Click Add

A dialog is shown

  • Click Select Wireless Radio
  • Choose wireless radio
  • Add new SSID
  • Click OK

Band Steering

The Band Steering view allows you to enable and configure band steering for the device.

Item Comment
Enable Turn band steering on or off.
Steering Policy RSSI or bandwidth.
Threshold Bandwidth or RSSI threshold value.
Enable Band Steering

To enable band steering:

  • Click Enable toggle
  • Choose steering policy
  • Set threshold value to use for the selected policy.

WPS Settings

The WPS Settings view lets you change the default wireless security settings (WPS) to make your network more secure.

General WPS Settings

The WPS Settings section allows you to choose and configure different connection methods on an encrypted channel.

→ Read more...

WPS-PBC: Push Button on Device

The WPS-PBC: Push Button on Device section lets you pair your devices.

→ Read more...

WPS/REG: Device provides PIN

The section WPS-REG: Device provides PIN lets you generate a personal identification number through WPS.

→ Read more...

WPS-PIN: Another Device provides PIN

The section WPS-PIN: Another Device provides PIN allows you to enter a PIN provided by another device.

→ Read more...

General WPS Settings

The WPS Settings section allows you to choose and configure different connection methods on an encrypted channel.

Item Comment
WPS Function Turn on or off for device.
Enable WPS on (5GHz) Turn WPS on or off for radio.
Enable WPS on (2.4GHz) Turn WPS on or off for radio.

WPS-PBC: Push Button on Device

The WPS-PBC: Push Button on Device section lets you pair your devices.

Item Comment
Enable WPS button on device Turn on or off.
Pressing WiFi on/off button on your device for long time activates pairing Turn on or off.
Pair (within 2 minutes) Pair button.

Pairing Your Device

To a device via WPS:

  • Click the Pair button
  • Press the corresponding button on the device you wish to connect

Your device will be open for pairing for two minutes.

WPS-PIN: Another Device provides PIN

The section WPS-PIN: Another Device provides PIN allows you to enter a PIN provided by another device.

Item Comment
Enter your device PIN Enter device PIN
Pair (within 2 minutes) Pair button.

WPS/REG: Device provides PIN

The section WPS-REG: Device provides PIN lets you generate a personal identification number through WPS.

Item Comment
WPS Using Generated PIN Turn on or off.
Generated PIN Generated PIN shown
Generate PIN Generate button.

Generating a PIN

To generate a PIN through WPS:

  • Click the Generate button

MAC Filter

In the MAC Filter view you can make your wireless network more secure. Just specify which devices are allowed to connect, or explicitly lock out devices.

Filters can be applied separately for each radio .

The devices are identified by their MAC address. You can manage up to 32 devices.

Section Description
MAC Filtering Turn filtering on or off.
Access for listed devices Access setting for clients in the list.
Currently added devices List of filtered devices.
Add currently connected hosts ot the list Collect all currently active devices to the list.
Enable MAC Filter

To enable MAC Filtering:

  • Click the MAC Filtering toggle button
  • Choose type of Access for listed devices
    • Allow - Access
    • Deny - No access
  • Click the add button next to Currently added devices
  • Enter the MAC address for the device
  • Click Save
  • Click Apply

System

The System view provides access to device information, management, provisioning and settings.

General Settings

The General Settings view contains basic device settings.

Item Description
Local Time Local time for the device.
Timezone Device timezone setting.
Hostname Device hostname.

The Menu Access view allows you to switch access to menus and menu items in the web interface on or off.

→ Read more...

Passwords

The Passwords view lets you change passwords for device users.

→ Read more...

Firmware Upgrade

The Firmware Upgrade view lets you upgrade the device firmware by using image files.

→ Read more...

Backup/Restore

The Backup/Restore view allows you to manage backups and resets of the device.

→ Read more...

IUP

The IUP view allows you to set up parameters for provisioning services and configurations with Inteno Universal Provisioning.

→ Read more...

TR69

The TR69 Settings view allows you to configure TR069 support for device management and provisioning from the WAN.

→ Read more...

Management

The Management view lets you configure WAN to SSH connections and access to services.

→ Read more...

Power Management

The Power Management view allows you to manage CPU effiency and Ethernet hardware ports.

→ Read more...

Services

The Services view lets you manage system services on the device.

→ Read more...

Restart

The Restart page allows to restart your Internet connection and reboot your device.

→ Read more...

General Settings

The General Settings view contains basic device settings.

Item Description
Local Time Local time for the device.
Timezone Device timezone setting.
Hostname Device hostname.

Time Servers

The Time Servers section shows NTP time servers in use.

Item Description
Time Servers (NTP) List of NTP servers to use.
Server Mode Turn NTP server mode on or off.
Add Server

To add a time server:

  • Click the add button
  • Enter the server address in URL box
  • Click Apply

Log Settings

The Log Settings view contains settings for the system logs.

Current Firmware

Item Description
System Log Level System Logging level
Cron Log Level Cron Logging level
Kernel Log Level  Kernel Logging level
Log File Location to save the log file.
Log IP IP address of remote log server.
Log Port Port for the remote log server.
Log Prefix Prefix to use in log.
Log Protocol Protocol for transfer of log information (UDP / TCP).
Log Remote Turn remote logging on or off.
Log Size Max size of log in Kb.
Trailing null Use trailing null insted of newline when using TCP
Log Type Type of logging to use (circular = limited /file = unlimited number of files).

Connectivity Test

The Connectivity Test view allows for automatic verification of the Internet connection by accessing a predefined URL.

Current Firmware

Item Description
Internet URL for checking Internet connection.

The Menu Access view allows you to switch access to menus and menu items in the web interface on or off.

Note: The admin account cannot have restrictions on menu access.

At the top of the page is a list of user roles.

When a particular role is selected for editing, all menu and menu items are shown in the list.

You can change the access status of any item by moving the associated slider.

Passwords

The Passwords view lets you change passwords for device users.

Change Password Dialog
Item Description
Current Password The existing password.
New Password Password to change to.
Reenter Password Verification of new password.
Password Strength Indicates the security level of the new password.

Note: For security reasons, the current password is never displayed.

Change password

To change password for a user:

  • Open the Change password for user
  • Select a user role
  • Click Change Password

The change password dialog opens.

  • Enter the current password
  • Enter the new password
  • Enter the new password again
  • Click Change Password

Firmware Upgrade

The Firmware Upgrade view lets you upgrade the device firmware by using image files.

Current Firmware

The Current Firmware Version shows currently installed firmware on the device.

USB Firmware Upgrade

In the USB Firmware Upgrade section you can perform an automatic search for upgrade image file on USB devices, and perform the upgrade.

The check for upgrade starts a search for image files on any connected USB devices.

Note: The type of image file to use for upgrades is defined in Firmware options.

Manual Firmware Upgrade

In the manual firmware upgrade section you can select an image file on your computer, upload it to the device, and perform the upgrade.

Item Description
Select firmware file to upload Upgrade image file on local computer.
Start upgrade Button to start upgrade.

Upgrade Options

The Upgrade Options view lets you configure parameters for firmware upgrades.

Firmware image extensions

The firmware image extension setting defines which type of image file to use for upgrades.

Item Description
.y UBIFS Image
.w JFFS Image with CFE
.y UBIFS Image
.y2 new UBIFS Image
fs_image JFFS Image

Online Upgrade

The online upgrade settings define where the online upgrade images are located.

Item Description
URL for file with latest image filename URL to a text file containing the latest image filename on the server.
Upgrade URL base path URL to directory containing upgrade image files.

Backup/Restore

The Backup/Restore view allows you to manage backups and resets of the device.

Backup Settings

In the Backup Settings section you can save a copy of your device configuration or load a saved configuration into the device.

Save Backup

  • Click Save

The Save Configuration dialog opens.

  • If you want to encrypt the backup file:
    • Enter a Backup file password
    • Retype the password
  • Click Continue

The file is saved as a compressed file archive to your local computer.

Load Backup

To load a saved configuration the factory reset:

  • Click Load
  • Click Continue

The Load New Configuration dialog opens.

  • Click Choose File
  • If the backup file is encrypted:
    • Enter a Backup file password

Factory Settings

In the Factory Settings you can

Note: Reset restores your device to the factory defaults and remove any configurations ou have made.

To perform the factory reset:

  • Click Reset

Backup Settings

The Backup Settings view lets you select which services and settings to include in backups.

The list contains a selection of services and settings that can be included when performing backups.

You can change the status of any item by moving the associated slider.

IUP

The IUP view allows you to set up parameters for provisioning services and configurations with Inteno Universal Provisioning.

The IUP view is divided inte several sections.

General

In the General section you can manage general provisioning settings.

Item Description
Enabled Turn provisioning on or off.
Update interval start time Time of day to start update.
Update interval Hourly / Daily / Weekly.
Export file Download provisioning file.

Main Provisioning Server

In the Main Provisioning Server section you can add a manual provisioning server address.

Note: This will override DHCP Discover Provisioning, even if it is enabled.

Item Description
Enabled Turn main provisioning server on or off.
Reboot Reboot after configuration has been applied.
URL Address to the provisioning server.
Decryption Key Key for encrypted provisioning archive.

DHCP Discover Provisioning Server

In the DHCP Discover Provisioning Server section you can enable automatic discovery of provisioning server.

Item Description
Enabled Turn software update on or off.

Software Update Config

In the Software Update Config section you can configure online update of software.

Item Description
Enabled Turn software update on or off.
Item Description
Enabled Turn software update on or off.
Default reset Remove device configurations and set to default.
Software URL Location of software configuration.

Sub Configs

In the sub configs section you can add sub configurations of specific parts.

Item Description
URL Location of configuration file.
Package Control
Enabled Turn sub configurations on or off.
Add Sub Config

To add a sub configuration:

  • Click Add sub config
  • Enter the URL for the configuration file
  • Enter the relevant Package Control
  • Select if the su config should be Enabled

TR69

The TR69 Settings view allows you to configure TR069 support for device management and provisioning from the WAN.

The TR69 view is divided into sections.

Configure ACS Specific Settings

In the ACS section, you can configure ACS settings.

Item Description
ACS User Name USer name for the ACS connection.
ACS Password Password for the ACS connection.
URL Location of the ACS server.
Periodic Inform Enable Turn Periodic Inform on or off.
Periodic Inform Time Absolute UTC time when CPEs will send Periodic Inform calls.
DHCP Discovery Turn automatic discovery of server on or off.

Configure CPE Specific Settings

In the CPE section, you can configure CPE connection settings.

Item Description
WAN Interface Interface for the connection.
Connection Request User Name User name for the ACS connection
Connection Request Password Password for the ACS connection.
Port Specific connection port.
Log Severity Level Logging information level.
Log to console Display logging messages in the console.
Log to file Turn logging to file on or off.
Log file max size Size of log file.
Provisioning Code Identifier for provisioning.

Management

The Management view lets you configure WAN to SSH connections and access to services.

SSH

The SSH view allows you to configure SSH access, server instances, and keys.

→ Read more...

Services

The Services view lets you configure WAN access to device services.

→ Read more...

OWSD

The OWSD view lets you configure settings for the open web-server daemon.

The server listens on a number of interfaces, and allows for separate configuration of access for each of them.

At the top of the page is a list of interfaces the server listens on.

When a particular interface is selected, details about it is shown in the configuration section.

Configuration

The Configure firewall rule section allows you to enable and configure a firewall rule for the selected service.

Item Description
Interface Listening interface.
Port Port to listen on.
IPv6 IPv4 / IPv6 address.
IPv6 only Limit to IPv6
List of allowed origins Filter for origin ( * for allow all).
Add Listen Interface
  • Click Add
  • Enter a Name

The firewall settings are displayed.

  • Add interface settings as needed.
  • Click Apply
Add Origin

Select an interface in the list.

  • Click Add
  • Enter the Origin
  • Click Add
  • Click Apply

SSH

The SSH view allows you to configure SSH access, server instances, and keys.

General Settings

The General Settings section contains management options for the SSH service.

Item Description
Enabled Turn SSH on or off.
Verbose Logging Turn verbose logging on or off.

Dropbear Instances

The Dropbear Instances section lets you create SSH server instances with different parameters.

Item Description
Password Autentication Turn access with password authentication on or off.
Port Connection port.
Enable Root Password Auth Turn root access with password authentication on or off.
Enable Root Login Turn root account access on or off.
Enable Forwarded Ports Turn forwarded ports on or off.
Interface Restrict SSH server to particular interface.
Add SSH Server instance:

To add a SSH Server instance:

  • Click Add
  • Enter parameters for the instance
  • Click Apply

Accepted SSH Keys

The SSH view allows you to configure SSH access, server instances, and keys.

To add a SSH key:

  • Click Add
  • Copy the public SSH key
  • Paste the public SSH key into the window
  • Click OK
  • Click Apply

Services

The Services view lets you configure WAN access to device services.

Allow WAN Access To Running Services

At the top of the page is a list of services.

When a particular service is selected, details about it is shown in the configuration section.

Configure firewall rule for this service

The Configure firewall rule section allows you to enable and configure a firewall rule for the selected service.

Where applicable, the configuration is divided into separate sections for source and destination zones.

Item Description
Enable WAN forwarding for this service Turn WAN access on or off.
Name Identifier for the rule.
Zone Device / Any / LAN / WAN
IP IPv4 / IPv6 address.
MAC MAC address.
Port Port affected.
IP version Any / IPv4 / IPv6
Protocol Protocol affected: (UDP / TCP / ICMP / TCP + UDP / ESP)
Firewall action Firewall action to perform.
Add Firewall Rule

Select a service in the list.

  • Click the Enable WAN forwarding for this service button

The firewall settings are displayed.

  • Add rule settings as needed.
  • Click Apply

Hardware

Configure Buttons

The Configure Buttons view allows you to enable or disable the buttons on your device.

The exact buttons available vary with device type.

→ Read more...

LEDs

The LED view allows you to enable or disable the status LEDs on your device.

→ Read more...

Configure Buttons

The Configure Buttons view allows you to enable or disable the buttons on your device.

The exact buttons available vary with device type.

Examples

Reset

Status

Wireless

WPS

DECT

EXT

Toggle Button

To switch a button on or off:

  • Find the desired button in the list
  • Click the slider button in the interface
  • Click Apply

LEDs

The LED view allows you to enable or disable the status LEDs on your device.

Displayed Leds

The exact LEDs available vary with device type. The status of each LED is shown on the left of the name.

Examples

BROADBAND

DECT

DSL

EXT

INTERNET

LOGO

STATUS

VOICE1

WAN

WIFI

WPS

Toggle LED

To switch a LED on or off:

  • Find the desired LED in the list
  • Click the slider button in the interface
  • Click Apply

Power Management

The Power Management view allows you to manage CPU effiency and Ethernet hardware ports.

Item Description
CPU Speed CPU Sync.
CPU r4k Wait Sleep mode configuration.
Ethernet Auto Power Down Turn Ethernet Auto Power Down on or off.
Energy Efficent Ethernet Turn Energy-Efficient Ethernet on or off.

Services

The Services view lets you manage system services on the device.

The list contains system running and available services.

Item Description
Priority System priority.
Service Service identifier.
Enable Enable or disable service.
Action Buttons to start, stop and restart the service.

Restart

The Restart page allows to restart your Internet connection and reboot your device.

Restart device

Note: Restarting the device will disconnect all phone, Internet and TV services while the device is restarting.

To restart your device:

  • Click Restart

A confirmation dialog is shown

  • Click Yes

A restart dialog is shown.

When the device has restarted, the browser reconnects and the login dialog is shown.

Status

The Status area provides an overview of the current situation for your device, network and services, and also contains diagnostic tools.

System

The System Status view displays information about a number of parameters regarding your gateway and its operation.

→ Read more...

IGPM TV

The IGPM TV Status views shows information about your IPTV services and their connection status.

→ Read more...

WiFi

The WiFi Status view shows information about the wireless network, and allows you to scan the local area for other wireless access points.

→ Read more...

DSL

The DSL status view shows information about any DSL connections to the device.

→ Read more...

USB

The USB devices views displays information about any USB devices connected to the gateway device.

Note: Supported file systems for USB devices are NTFS and FAT32.

→ Read more...

Network

The Network Status view shows information about various aspects of your network.

→ Read more...

Diagnostics

The Diagnostic Utility allows you to perform diagnostic tests from the web interface.

→ Read more...

Voice

The Voice Status view shows information about SIP accounts, phone numbers and voice lines connected to the device.

→ Read more...

System

The System Status view displays information about a number of parameters regarding your gateway and its operation.

System

The System Status overview shows basic data about the device.

→ Read more...

Processes

The Processes view shows information about system processes and CPU usage.

→ Read more...

System

The System Status overview shows basic data about the device.

Configuration

Option Description Sample value
Hostname The hostname for the gateway. Inteno
Model Gateway model. DG400A
Firmware Version Version of installed firmware. DG400-WU7UINT3.5.5-1605131617
Kernel Version The gateway operating system kernel version. 3.11
Filesystem Filesystem used in gateway storage. UBIFS
BRCM Version (Broadcom Devices only) Version number for the Broadcom driver. 4.16L.04
Local Time Time according to the gateway internal clock. Mon May 23 2016 17:21:12 GMT+0200 (CEST)
Uptime Time the gateway has been runnning since last startup. 5d 2h 53m 14s
CPU Percentage of CPU processing in use. 0%
Active Connections Number and percentage of connections to the gateway. 259 / 7660 (3%)

System Memory

The System Memory Status view displays information about memory usage in the device.

Configuration

Option Description Sample value
Usage Memory used by the system. 163144 kB / 226308 kB (72%)
Shared Shared memory in use. 0 kB / 226308 kB (0%)
Buffered Memory buffer in use. 0 kB / 226308 kB (0%)
Swap Swap file system used. 0 kB / 0 kB (0%)

System Storage

The System Storage Status view shows information about file systems and space used.

Examples

Option Description
rootfs(/) Root.
tmpfs(/tmp) Temporary.
tmpfs(/dev) Devices.
tmpfs(/mnt) Mount point.
tmpfs(/dev/sda1) An attached USB stick.

Processes

The Processes view shows information about system processes and CPU usage.

Overview

The overview shows a summary of the processes:

Item Description Comment
Total number of processes 96
Total CPU usage 9%
Process Detail Toggle

You can access detailed realtime information about running processes, by clicking the information toggle.

To open the Details view:

  • Click Click here to view details

Details

In the details view, you can get detailed information about all processes running on the device.

Configuration

For each process, information about a number of properties is displayed:

Property Description Comment
PID Process ID Unique identifier for the process.
PPID Parent Process ID Unique identifier for the parent process.
USER User running the service.
STAT State Code.
VSZ Virtual Memory Size.
%VSZ Virtual Memory Size Percentage.
%CPU CPU Percentage.
COMMAND The command used to run the process.

Network

The Network Status view shows information about various aspects of your network.

Status

The Network Status view provides an overview of network elements for your device.

→ Read more...

Clients

The Connected Clients view shows a list of clients connected to the network.

→ Read more...

Routing

The Routing Status view shows the static routes configuration for the various network types.

→ Read more...

UPnP

The UPnP Open Ports view shows the status of any UPnP ports currently in use.

DHCP

The Active DHCP Leases view shows the status of any DHCP leases currently in use.

→ Read more...

NAT

The NAT view shows a list of active NAT mappings in the device network.

→ Read more...

Status

The Network Status view provides an overview of network elements for your device.

WAN6

The WAN6 view shows information about any connected IPv6 network.

LAN

The LAN view shows information about the local network connected IPv6 network.

Option Description Comment
IP Address IP address of the device on the local network. Typically 192.168.1.1.
WAN

The WAN view shows information about any connected IPv4 network.

Option Description
IP Address IP address for the device on the Internet.
Gateway IP address to the internet gateway.
Primary DNS First priority DNS server.
Secondary DNS Second priority DNS server.

Clients

The Connected Clients view shows a list of clients connected to the network.

Table
Column Description Comment
Hostname Client hostname.
MAC Address Client MAC Address .
IPv4 Address Client IPv4 Address.
IPv6 Address Client IPv6 Address.
Active Connections Number of active connections.

Routing

The Routing Status view shows the static routes configuration for the various network types.

ARP

The ARP status view shows information about ARP routes.

→ Read more...

IPv4

The IPv4 status view shows information about IPv4 routes.

→ Read more...

IPv6

The IPv6 status view shows information about IPv6 routes.

→ Read more...

IPv6 Neighbors

The IPv6 Neighbors view shows information about IPv6 devices in the network neighborhood.

→ Read more...

ARP

The ARP status view shows information about ARP routes.

Table

The table displays information about static ARP routes.

Column Description Comment
IPv4 Address IPv4 Address.
MAC Address Client MAC Address .
Device Network device type. Displayed as virtual interface name.

IPv4

The IPv4 status view shows information about IPv4 routes.

Table

The table displays information about static IPv4 routes.

Column Description Comment
IPv4 Address IPv4 Address.
Gateway IP address to the internet gateway.
Genmask Route genmask.
Device Network device type. Displayed as virtual interface name.

IPv6

The IPv6 status view shows information about IPv6 routes.

Table

The table displays information about static IPv6 routes.

Column Description Comment
IPv6 Address IPv6 Address.
Next Hop Next Hop device.
Device Network device type. Displayed as virtual interface name.

IPv6 Neighbors

The IPv6 Neighbors view shows information about IPv6 devices in the network neighborhood.

Table

The table shows information about discovered IPv6 neighbors.

Column Description
Interface Connected interface.
IP address IPv6 address.
HW address Hardware address.
Status Device status.

UPnP

The UPnP Open Ports view shows the status of any UPnP ports currently in use.

DHCP

The Active DHCP Leases view shows the status of any DHCP leases currently in use.

DHCPv4 Leases
Column Description
Hostname Client hostname.
IPv4 Address Client IPv4 Address.
MAC Address Client MAC Address.
Leasetime remaining Time until the lease expires.
DHCPv6 Leases
Column Description
Hostname Client hostname.
IPv6 Address Client IPv6 Address.
DUID Client DUID.
Leasetime remaining Time until the lease expires.

NAT

The NAT view shows a list of active NAT mappings in the device network.

Connections

The Active Connections gauge shows how many NAT mappings are in use out of the allowed total, as a percentage and as a count.

NAT Connection Table

Connections to and from the local network to the external network are added to the table, allowing the device to handle traffic routing decisions.

The table displays information about active NAT connections.

Column Description Comment
Protocol Communication protocol used.
Source Internal IP address.
Destination. External IP address.
Source Port Internal Port.
Destination Port External Port.

WiFi

The WiFi Status view shows information about the wireless network, and allows you to scan the local area for other wireless access points.

WiFi

The general WiFI Status view displays information about your wireless channels and network interfaces.

→ Read more...

WiFi Scan

The WiFi scan view allows you to scan the area around the device to find out what other access points are visible.

→ Read more...

WiFi

The general WiFI Status view displays information about your wireless channels and network interfaces.

Configuration

For each wireless radioinformation is displayed about:

Client

For each connected client, more infomation about the connected client is available.

→ Read more...

Client

For each connected client, more infomation about the connected client is available.

Details

To view more details about a client, click the expand button.

Item Description Example
IP-Address Client IPv4 address.  10.0.0.154
MAC-Address Client MAC address.  1A:97:1C:C7:76:63
DHCP Does client use DHCP?  true
Idle Is the device transmitting?  0
In Network ID for connected network.  74
RSSI Received signal strength indicator value.  -42 dBm
SNR Signal to Noise Ratio value.  41 dB
Number of Antennas Client antennas in use.  2
TX Rate Transmission rate.  130 Mbps
RX Rate Receive rate.  144 Mbps
Flags Provided device flags.  BRCM, WME, N_CAP, AMPDU
HT Capabilities Supported HT Capabilities (data rates).  LDPC, BW40, SGI20, SGI40
TX Total Packets Total number of transmitted packets.  22589
Unicast Packets Total packets transmitted through unicast.  224
TX Unicast Packets Packets transmitted through unicast.  224
TX Multicast/Broadcast Packets Packets transmitted through multicast.  22365
TX Failures Transmission failures.  0
RX Data Packets Received packets.  440
RX Unicast Packets Received packets transmitted through unicast.  209
RX Multicast/Broadcast Packets Received packets transmitted through multicast.  231
TX Data Packets Retried Resent data packets.  0
TX Total Packets Sent Total data packets transmitted through unicast.  7
TX Packets Retries Retransmitted data packets.  1
TX Packets Retry Exhausted Data Packets failed after retry.  0
RX Total Packets Retried Retransmitted data packets.  107

<a data-curid=“true” href=“:ade:status:wifi:scan:start&fullpage&noreadmore}}

Band Steering

The Band Steering view shows information about band steering.

Status

The status section shows the current band steering status.

The information is displayed in the STA info summary table.

Column Description
STAMAC | Station (client) MAC address. | | Interface | Client interface name. | | TimeStamp | Timestamp for the steering event. | | Txrate Transmission rate.
RSSI Received signal strength indicator .
Bounce Does the client bounce back to a particular bandafter steering? (yes/no).
Picky Does the client prefer a particular band? (yes/no).
PSTA Is the client a proxy station? (yes/no).
DUALBAND Is the client dual-band capable? (yes/no).
Log

The log section contains the log file, which shows the band steering events.

The information is displayed in the Band Steering Record table.

Column Description
 Seq
 TimeStamp  Timestamp for the steering event.
 STAMAC | Station (client) MAC address. | | Fmch  From channel (hex code).
 To_ch  To channel (hex code).
 Reason  Event (hex code).
 Description  Description of event.

DSL

The DSL status view shows information about any DSL connections to the device.

DSL Status Information

The DSL Status Information section shows the status for the DSL line.

Line Status
Status Description
Idle No connection.
Handshake Searching for connection, negotiating transfer.
Training Connection found, testing cable.
Showtime/Active Connection established.
DSL Mode

The DSL Mode section shows the DSL.

Bit Rate

The Bit Rate section shows transmission rates for streams in bits per second (bps).

Actual Data Rate
Column Description
Downstream Rate to the device.
Upstream Reate from the device.
Operating Data

The Operating Data section shows signal strength for the DSL line.

SNR margin

The SNR Margin section displays the signal-to-noise margin for the streams.

Column Description
Downstream To the device.
Upstream From the device.
Loop Attentuation

The Loop Attentuation section shows signal attentuation for the streams.

Column Description
Downstream To the device.
Upstream From the device.
Error Counter

The Error Counter section lists the number of (discovered) errors for the connection.

FEC Corrections

The FEC Corrections table shows FEC corrections for the streams.

Column Description
Downstream To the device.
Upstream From the device.
CRC Corrections

The CRC Corrections table shows CRC corrections for the streams.

Column Description
Downstream To the device.
Upstream From the device.
Cell Statistics

The Cell Statistics section shows the number of cells transmitted for the streams.

Column Description
Received To the device.
Transmitted From the device.

IGPM TV

The IGPM TV Status views shows information about your IPTV services and their connection status.

Configuration

The table shows any connected IGMP TV channels and information about each:

Column Description
Group IP IP address of the IGMP group.
Client IP IP address of the client.
LAN Port LAN Port used for the group.
WAN Port WAN Port used for the group.
Timeout Time until the gateway triggers IGMP query reelection.

USB

The USB devices views displays information about any USB devices connected to the gateway device.

Note: Supported file systems for USB devices are NTFS and FAT32.

Table

The USB device information table shows information about the USB devices.

Column Description Comment
Device ID Identification for the USB device.
Vendor ID Identification for the manufacturer.
Vendor Name Name of the manufacturer.
Device Name Name reported by the USB device.

CATV

The CATV Status view shows information about CATV services connected to the device.

Note: Available on EG300 & EG400 only.

Option Description Example
Inteno model Model. CATV-302
VPD Reverse voltage on Protection Device. -inf dBm
RF Range. 75.7 dBµV
RF enable Enable RF. OFF

SFP

The SFP Status view shows information about SFP connectors enabled in the device.

Configuration

Information is shown in two tables; ROM information and DDM information.

Note: Available on EG300 & EG400 only.

DDM

The DDM table shows information about the DDM retrieved from the SFP.

Option Description Example
voltage Port voltage. 3.1872 (V)
current Port current. 26.448 (mA)
tx-pwr Broadcasting power. 0.3530 (mW)
tx-pwr-dBm Broadcasting power. -4.5223 (dBm)
rx-pwr Received signal power. 0.3026 (mW)
rx-pwr-dBm Received signal power. -5.1913 (dBm)
rx-pwr-type Received power type. average
ROM

The ROM table shows information about the ROM.

Option Description Example
 connector Connector type. SC
ethernet Ethernet type. LX
encoding Encoding type. 8B10B
rate Line rate. 1300
single-mode Single mode distance. 20000
vendor Port manufacturer or vendor. Skylane Optics
oui Organizationally Unique Identifier. 00:25:cd
pn Product name. SBU35020DR3D000
rev ROM Revision. A
sn Serial Number b19bmjrx1857
date ROM date. 2016-04-21
ddm DDM version 9.3

Diagnostics

The Diagnostic Utility allows you to perform diagnostic tests from the web interface.

Ping

The Ping Test view allows you to perform a Ping for a selected host.

→ Read more...

Trace

The Tracing tool view allows you to perform a Traceroute Test for a selected host.

→ Read more...

Speed Test

The Speed Test view allows you to perform a TP Test for your network, using your device as the endpoint.

→ Read more...

Ping

The Ping Test view allows you to perform a Ping for a selected host.

Ping Test

To perform a ping test against an endpoint:

The result of the ping is shown below the utility.

Example:
PING 127.0.0.1 (127.0.0.1): 56 data bytes
64 bytes from 127.0.0.1: seq=0 ttl=64 time=0.208 ms
64 bytes from 127.0.0.1: seq=1 ttl=64 time=0.130 ms
64 bytes from 127.0.0.1: seq=2 ttl=64 time=0.129 ms
64 bytes from 127.0.0.1: seq=3 ttl=64 time=0.146 ms
64 bytes from 127.0.0.1: seq=4 ttl=64 time=0.130 ms

--- 127.0.0.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.129/0.148/0.208 ms

Trace

The Tracing tool view allows you to perform a Traceroute Test for a selected host.

Traceroute Test

To perform a ping test against an endpoint:

The result of the trace is shown below the utility.

Example:

Trace results:

traceroute to 127.0.0.1 (127.0.0.1), 30 hops max, 38 byte packets
 1  127.0.0.1  0.033 ms

Speed Test

The Speed Test view allows you to perform a TP Test for your network, using your device as the endpoint.

Configuration

Option Description Comment
Direction Traffic direction to test. Up and Down, Up, Down.
Package Size Size of test data packages to send. Size of test packages to send.
Speedtest Server Server to use for the test. A number of default servers are provided, but you can edit the list.
Perform Speed Test
Example

Test results:

Downstream: 103.45 Mbit/s
Upstream: 44.10 Mbit/s
Add test server

If you have additional test servers you want to use, you can add them to the dropdown list.

To add a test server:

  • Click the + plus sign

A dialog is shown allowing you to enter parameters:

Option Description Comment
Hostname Test Server hostname
Port Test server port
  • Add a valid Server Hostname
  • Add a valid server Port
  • Click OK
Remove test server

Servers in the test server list can be removed.

To remove a test server:

  • Select the server in the Speedtest Server list
  • Click the - minus sign

The server is removed from the list immediately.

Realtime Graphs

The Realtime Graphs view provides access to graphical representations of status for the device. The graphs scroll as time progresses and lines indicate the current status.

Overview

Load

The Load graph shows device load averages for different time recent periods.

→ Read more...

Traffic

The Traffic graph shows upload and download traffic for the interfaces.

→ Read more...

Connections

The Connections graph shows the number of currently active connections for the device.

→ Read more...

Load

The Load graph shows device load averages for different time recent periods.

Graph Lines

The display is shown in realtime, and the lines represent the average over different intervals:

Color Time
 Blue  1 minute
 Red  5 minutes
 Purple  15 minutes

Load

Traffic

The Traffic graph shows upload and download traffic for the interfaces.

Graph Lines

Each interface is available in its own tab. The display is shown in realtime, with lines representing traffic in kbit/s:

Color Traffic
 Blue  Downstream.
 Red  Upstream.

Traffic

Connections

The Connections graph shows the number of currently active connections for the device.

Graph Lines

The lines representing different connection types:

Color Traffic
 Blue  TCP connections.
 Red  UDP connections.

Connections

Voice

The Voice Status view shows information about SIP accounts, phone numbers and voice lines connected to the device.

Configuration

Information is shown in two tables.

Your phone numbers
Option Description Comment
Name SIP account name. Uses type and number unless otherwise set.
User SIP user.
Domain SIP domain.
Registration interval SIP registration interval domain.
Last registration Last registration time.
Status Current status of the line.
Voice lines

The Voice lines shows a list of connected voice lines.

Option Description
Name Voice line name. Uses type and number unless otherwise set.
State Current state of the line.

Event Log

The Event Log view lets you view and manage the event log for the device.

Log

The Log section contains log settings and lets you download the logs.

Item Description
Download All Logs Save the logs to the local computer.
Limit Log List Limit the number of events.
Filter Log Messages By Source Filter out events by freetext search in source.
Filter By Type Filter out event types by Logging level.
Filter By Filter out events in the log (firewall / network / system / iptv).

Enable Online Help

For JUCI version 3.10.0+, online help is enabled by default.

However, if you upgrade from an earlier version, this option may not have been enabled. If so, you may need to connect to your device via SSH and run console commands to enable the setting.

CLI Enable Online Help

To enable online help:

Commands on Local Computer
  • Open a console window on your local computer.
  • Connect to the device:
ssh admin@192.168.1.1

Note: The address may be different from 192.168.1.1 for your device. Use the same address as for the usual login.

Note: You may need to enable SSH access to your device from the System > Management > SSH.

Note: For login, use the password defined in System > Passwords.

Commands on Device

The command line commands to run are the following:

To enable the help:

uci set juci.wiki.visible=1

To apply the setting:

uci commit juci

Glossary

The Available Bit Rate (ABR) service type is used primarily for traffic that is not time sensitive and don't need service level guarantees.

An access point is a device or interface that connects users to other users within the network. I can also serve as the point of interconnection between the WLAN and a fixed wire network.

The number of required access points depends on the number of network users and the area the network covers.

An Access Control List (ACL) is an table containing permissions for a particular service or device, defining access to objects and allowed operations.

An Auto Configuration Servers (ACS) is a server used for automatic device and user provisioning and configuration through TR069.

Adaptive Differential Pulse-Code Modulation (ADPCM) is a differential pulse-code modulation variant where the size of quantization ranges is modified with a scaling factor before encoding. This means that the bandwidth requiremetns are reduced.

Asymmetric digital subscriber line (ADSL) is a DSL technology providing network traffic over copper wires.

ADSL is slower than VDSL, with up to 24 Mbit/s downstream and 3.3 Mbit/s upstream speeds.

An ADvertisement SPECification (ADSPEC) is a part of an RSVP PATH message which contains information from network devices between a sender and receiver.

Typically the message allows advertise supprted services, availability and transmission information.

Assured Forwarding (AF) is a mechanism for assurance of delivery, given a defined rate.

In case of congestion, traffic that exceeds the rate have a higher probability of being dropped.

The four AF classes have the same priority. For each class, packets are given a drop probability.

Drop probability Class 1 Class 2 Class 3 Class 4
Low AF11 AF21 AF31 AF41
Medium AF12 AF22 AF32 AF42
High AF13 AF23 AF33 AF43

An Address Family Transition Router (AFTR) is a server implementing the Dual-Stack Lite to provide IPv4 to IPv4 communication over IPv6.

An Aggregated MAC Protocol Data Unit - AMPDU - is an aggregation of MPDUs.

An Aggregated MAC Service Data Unit is an aggregation of MSDUs.

An Access Point Name (APN) is the name of a gateway between a mobile network providing access to Internet.

Address Resolution Protocol (ARP) is a protocol for mapping an Internet Protocol address (IP address) to a physical machine address that is recognized in the local network.

Asterisk is a software PBX that handles calls betwen telephones and connections to PSTN and VoIP services.

ATF feature addresses the issue where low-speed data transfers impact high-speed data transfers.

Airtime Fairness gives equal amounts of air time (instead of equal number of frames) to each client regardless of its theoretical data rate. This will ensure higher download speed to latest devices when slower devices are connected to the same AP. This is done to prevent slower devices from penalizing faster devices by monopolizing network traffic.

In effect this means that Airtime Fairness improves the speed for faster devices by making the slowest devices even slower. This may allow better Quality of Service for faster devices, and should be negligible for the slower devices in most cases.

Using band steering in combination of Airtime Fairness can further improve results.

ATM - Asyncronous Data Transfer Mode is a protocol for high-throughput data traffic and streaming.

Auto-negotiation is a method in Ethernet where two devices agree on the best performance transmission mode they both support.

Back-Off is a method for decreasing the frequency of retransmissions of request in order to avoid congestion and collision.

The bandwith is is a measure of network capacity. It indicates the bit rate capacity.

Band steering allows the device to determin if a connected client is dual-band capable. If so, the client can be forced to use the less congested 5GHz network.

This is done by blocking the client from connecting to the 2.4GHz network.

Beamforming is technique used for radio signals to improve quality and performance. It is done by creating multiple signals and finding the best paths, thereby “shaping” the antenna output to provide minimum interference.

The Bit Error Rate (BER) is the percentage of transmitted bits which contain errors.

Bitswap is a methoid for adjusting the number of bits allocated to channels. Congested channels are assigned fewer bits, and available channels are allocated more bits.

The bit rate is a measure of traffic speed in a network. It indicates the number of bits per second transmitted.

The basic service set (BSS) is the basic building block in a wireless LAN. It is a set of all stations that can communicate with each other. Every BSS has an identification (ID) called the BSSID, which is the MAC address of the access point servicing the BSS.

A Certificate Authority (CA) is an entity that issues digital certificates which guarantee that a public key is owned by the certificate subject, verifying their identity.

Certificates typically include the owner's public key, the expiration date of the certificate, the owner's name and other information about the public key owner.

Community Antenna TeleVision (CATV), or “cable TV”, is a system of delivering television programming radio frequency (RF) signals transmitted through coaxial cables or fiber-optic cables.

The Constant Bit Rate (CBR) service type is used for applications that transport traffic at a constant bit rate, where time synchronisation between source and destination is important, providing predictable response times and a static amount of bandwidth.

CCMP – CTR mode with CBC-MAC Protocol is based on the Advanced Encryption Standard (AES) cipher along with strong message authenticity and integrity checking.

Code division multiple access (CDMA) is a radio communication standard, where several transmitters can send information simultaneously over a single channel.

DSL cells are ATM data encoded into small, fixed-sized packets (frames).

Challenge Handshake Authentication Protocol (CHAP) is a method used to authenticate PPP sessions.

CHAP uses a randomly generated string as a unique challege phrase for each authentication. This is combined with device host names and hash functions so that no static secret information is sent.

A checksum is a value used as an error control mechanism. It works by calculating a sum for the data using a predefined algorithm, and then comparing the result to some expected value, or the checksum itself. If the result is not as expected, this indicates that something has gone wrong in transmission.

A WiFi security cipher is the method through which a connection is secured against intrusion.

For information about cipher strings, see https://www.openssl.org/docs/manmaster/apps/ciphers.html.

A Circuit ID is a unique identifier assigned to a network connection between two locations.

A Classful QDisc is a Quality Of Service function containing classes. The classes may contain other QDiscs, which un turn can be classful or classless.

Cell Loss Ratio (CLR) is the percentage of network cells that do not arrive at their destination.

A coder-decoder (codec) is a method for encoding or decoding digital data streams or signals. It uses various algorithms to encode data for transmission or storage, or decodes encoded data for use.

Com2Sec is a security protocol and access method for SNMP management.

A compressing-expanding (companding) is a method for managing dynamic range in channels with limited dynamic range. It compresses the dynamic range of a signal transmission and expands it at the receiving end, according to the defined.

Network congestion is when the traffic volume in the network becomes so large it affects the trasnmission and delivery of data packets, thereby causing a reduced quality of service.

Connection Bytes is a filtering property that matches packets only after the specified number of bytes has been transfered through the connection.

The term Customer-Premises Equipment (CPE) is used in TR069 and refers to devices in a network that is located in the premises of a subscriber.

The CPU percentage for a process indicates how much of CPU processing power is being used.

The CPU value indicates how much of CPU processing power is being used.

Cyclic Redundancy Check (CRC) is a method for discovering errors in data transmission by verifying the received data against an attached check value.

The Cron Log level determines how much information to display or write to file when creating system logs.

Level
Everything
High Verbosity
Low Verbosity
Executions and Errors
Only Errors

The Class Selector (CS) is used by Differentiated Services as a precedence code point value that maps to a Differentiated Services Code Point. It is backwards compatible with IP precedence values.

A data package is a portion of data that transmitted between a source and destination in a network, normally of larger size.

Digital diagnostics monitoring (DDM) is a feature for SFP parameter monitoring in a device.

Dynamic DNS (DDNS) is a method for automatically providing DNS servers with up to date information about configured hostnames and addresses.

DECT - Digital Enhanced Cordless Telecommunications is a European standard for cordless telephone systems over radio.

In the United States a slightly different radio frequency range is used, and it is called DECT 6.0.

Network delay is a network characteristic indicating how long it takes for a piece of data to travel across the network.

The Device Flags field shows information about the physical device.

Dynamic Frequency Selection (DFS) means that the wireless radio automatically selects the least congested wifi channel to use.

DHCP – Dynamic Host Configuration Protocol

A device can be used as a DHCP server to automatically assign an IP address to each computer or device on a network.

DCHP is used for both ipv4 and ipv6.

A DHCP Lease is a DHCP is a reservation of a particular IP address provided to a client by a DHCP server. It is called lease because it expires aftrer a certain amoutn of time (usually 24 hours. Before the lease expires, the DHCP server should renew the lease or provide a new lease.

When sending DHCP requests, additional options can be requested by providing a space separated list of codes.

Code Description
0 Pad.
1 Subnet Mask.
2 Time Offset(deprecated).
3 Router.
4 Time Server.
5 Name Server.
6 Domain Name Server.
7 Log Server.
8 Quote Server.
9 LPR Server.
10 Impress Server.
11 Resource Location Server.
12 Host Name.
13 Boot File Size.
14 Merit Dump File.
15 Domain Name.
16 Swap Server.
17 Root Path.
18 Extensions Path.
19 IP Forwarding enable/disable.
20 Non-local Source Routing enable/disable.
21 Policy Filter.
22 Maximum Datagram Reassembly Size.
23 Default IP Time-to-live.
24 Path MTU Aging Timeout.
25 Path MTU Plateau Table.
26 Interface MTU.
27 All Subnets are Local.
28 Broadcast Address.
29 Perform Mask Discovery.
30 Mask supplier.
31 Perform router discovery.
32 Router solicitation address.
33 Static routing table.
34 Trailer encapsulation.
35 ARP cache timeout.
36 Ethernet encapsulation.
37 Default TCP TTL.
38 TCP keepalive interval.
39 TCP keepalive garbage.
40 Network Information Service Domain.
41 Network Information Servers.
42 NTP servers.
43 Vendor specific information.
44 NetBIOS over TCP/IP name server.
45 NetBIOS over TCP/IP Datagram Distribution Server.
46 NetBIOS over TCP/IP Node Type.
47 NetBIOS over TCP/IP Scope.
48 X Window System Font Server.
49 X Window System Display Manager.
50 Requested IP Address.
51 IP address lease time.
52 Option overload.
53 DHCP message type.
54 Server identifier.
55 Parameter request list.
56 Message.
57 Maximum DHCP message size.
58 Renew time value.
59 Rebinding time value.
60 Class-identifier.
61 Client-identifier.
62 NetWare/IP Domain Name.
63 NetWare/IP information.
64 Network Information Service+ Domain.
65 Network Information Service+ Servers.
66 TFTP server name.
67 Bootfile name.
68 Mobile IP Home Agent.
69 Simple Mail Transport Protocol Server.
70 Post Office Protocol Server.
71 Network News Transport Protocol Server.
72 Default World Wide Web Server.
73 Default Finger Server.
74 Default Internet Relay Chat Server.
75 StreetTalk Server.
76 StreetTalk Directory Assistance Server.
77 User Class Information.
78 SLP Directory Agent.
79 SLP Service Scope.
80 Rapid Commit.
81 FQDN, Fully Qualified Domain Name.
82 Relay Agent Information.
83 Internet Storage Name Service.
84 N/A
85 NDS servers.
86 NDS tree name.
87 NDS context.
88 BCMCS Controller Domain Name list.
89 BCMCS Controller IPv4 address list.
90 Authentication.
91 Client-last-transaction-time.
92 Associated-ip.
93 Client System Architecture Type.
94 Client Network Interface Identifier.
95 LDAP, Lightweight Directory Access Protocol.
96 N/A
97 Client Machine Identifier.
98 Open Group's User Authentication.
99 GEOCONF_CIVIC.
100 IEEE 1003.1 TZ String.
101 Reference to the TZ Database.
102-111 N/A
112 NetInfo Parent Server Address.
113 NetInfo Parent Server Tag.
114 URL.
115 N/A
116 Auto-Configure
117 Name Service Search.
118 Subnet Selection.
119 DNS domain search list.
120 SIP Servers DHCP Option.
121 Classless Static Route Option.
122 CCC, CableLabs Client Configuration.
123 GeoConf.
124 Vendor-Identifying Vendor Class.
125 Vendor-Identifying Vendor-Specific.
126 - 127 N/A
128 TFPT Server IP address.
129 Call Server IP address.
130 Discrimination string.
131 Remote statistics server IP address.
132 802.1P VLAN ID.
133 802.1Q L2 Priority.
134 Diffserv Code Point.
135 HTTP Proxy for phone-specific applications.
136 PANAAuthentication Agent.
137 LoSTServer.
138 CAPWAP Access Controller addresses.
139 OPTION-IPv4_Address-MoS.
140 OPTION-IPv4_FQDN-MoS.
141 SIP UA Configuration Service Domains.
142 OPTION-IPv4_Address-ANDSF.
143 OPTION-IPv6_Address-ANDSF.
144 - 149 N/A
150 TFTP server address.
150 Ether boot. GRUB configuration path name.
151-174 N/A
175 Ether boot.
176 IP Telephone.
177 Ether boot. Packet Cable and Cable Home.
178- 207 N/A
208 pxelinux.magic (string) = F1:00:74:7E (241.0.116.126).
209 pxelinux.configfile (text).
210 pxelinux.pathprefix (text).
211 pxelinux.reboottime (unsigned integer 32 bits).
212 OPTION_6RD.
213 OPTION_V4_ACCESS_DOMAIN.
214-219 N/A
220 Subnet Allocation.
221 Virtual Subnet Selection.
222-223 N/A
224-254 Private use.
255 End.

A DHCP pool is a collection of IP addresses available for DHCP allocation.

The Pool Start number is the first available number in the pool.

The Pool Size is the count of available numbers, counting from the pool start.

Example: with Pool Start of 50 and a Pool Size of 100, the available pool addresses are 50 to 150.

A DHCP server is a server that provides IP addresses to clients on the a network.

See also: Domain Name System.

A dial plan defines what sequence of digits need to be dialled in the private branch exchange to get access to specific calling networks or enable other features.

Differentiated Services (DiffServ) is a method for classifying traffic and providing quality of service for IP networks.

DiffServ uses a differentiated services code point in the IP header for packet classification purposes.

Digital Living Network Alliance (DLNA) is designed to act as a bridge between media and device. It needs either a wired or a wireless network.

Discrete MultiTone Modulation is a modulation method where the available bandwidth is divided into a large number of channels. Data is allocated to maximize the throughput of every channel. Channels that can't carry data are not used, and the bandwidth reallocated.

DMT is the technology which divides the whole bandwidth on the telephone line into lots of sub-channels and then controlling these 'virtual modems' as one together in order to get higher speeds.

DMZ (demilitarized zone) is used to provide an extra layer of security. It's a network added between a protected network and an external network.

The Domain Name System (DNS) is a hierarchical decentralized naming system for computers, services, or any resource connected to the Internet or a private network.

A Domain Name System Server runs networking software containing a database of network names and addresses to resources on the internet.

A domain name is typically a name that identifies a resource on the internet with an IP address, according to the Domain Name System.

Differential Pulse-Code Modulation (DPCM) is a signal encoding method that uses pulse code modulation as a baseline and then compares nearby values to encode a difference instead of a fixed value.

Dropping is when a packet is deliberately dropped due to congestion or other reasons, such as quality of service rules.

A Differentiated Services Code Point (DSCP) is a 6-bit code point in the differentiated services field (DS field) inside the packet IP header.

It is used by Differentiated Services for classification purposes to provide quality of service functionality.

DSL – Digital Subscriber Line is a way of providing high bandwidth data communication through regular copper telephone lines.

The DSL mode indicates the operation of a DSL line.

Dual-Stack Lite (DS-Lite) is amethod for sharing of IPv4 addresses by combining IPv4-in-IPv6 and NAT.

Dual Tone - Multi Frequency (DTMF) is a signalling method for telephone systems, which uses a set of eight audio frequencies transmitted in pairs to represent 16 signals, represented by the ten digits, the letters A to D, and the symbols # and *.

The DTMF mode is a setting that governs how Dual Tone Multi Frequency signalling is to be performed.

Mode Description
Compatibility Use RFC2833 by default but switch to inband when reciever does not support RFC2833.
RFC2833 Send DTMF information as RTP messages.
SIP INFO Send DTMF information as SIP messages.
Inband DTMF tones are generated by the calling device.

The DHCP Unique IDentifier – DUID – is a unique identifier associated with each client and server in a DHCP environment. The DUID should be permanently stored and not changed.

The term duplex indicates how traffic is performed. It can be either:

  • Half - only one side can communicate at a time.
  • Full - both sides can communicate with each other simultaneously.

The dwell time is the amount of time spent on each channel in the hopping sequence when hopping from channel to channel.

Ethernet Auto Power Down allows the hardware ports to be turned off automatically when not in use.

Extension mechanisms for DNS - EDNS - is a specification for expanding the size of several parameters of the Domain Name System DNS protocol.

EDNS adds information to DNS messages in the form of pseudo-resource-records included in the “additional data” section of a DNS message in both requests and responses.

EDNS is needed for DNS Security Extensions.

Energy-Efficient Ethernet (EEE) is a technology for allowing for less power consumption during periods of low data activity.

Ethernet over ATM (EoA) is a protocol using PPP to provide an DSL Internet connection over ATM.

Encapsulating Security Payload (ESP) is a security protocol for network data in IPv4 and IPv6 networks.

Ethernet a family of computer networking technologies commonly used in LANs.

Communication over ethernet consists of data frames. Each frame contains source and destination addresses, and error-checking data.

Evolution-Data Optimized (EVDO) is a standard for broadband Internet through wireless data transmission.

Failover means switching over to a different network when the selected network cannot be accessed.

Forward error correction entails encoding the signal with redundant information that can be matched to discover errors in the transmission.

The firewall action defines how traffic is handled by the firewall.

Item Description
ACCEPT Allow the traffic.
REJECT Refuse the traffic.
DROP Ignore the traffic.
FORWARD Pass the traffic along.

A firewall group is a collection of IP addresses that have the same firewall rules.

A firewall zone is a grouping of WiFi or network interfaces, with a common set of firewall rules.

A flow specification defines data traffic contents and requirements, and is used by devices to decide how to handle packets on the network. It consists of two parts - a Traffic SPECification, which describe traffic parameters an a Request SPECification that defines requirements for the flow.

In networking, a frame is a unit of data, consisting of addressing and synchronization information around a payload with data to be transmitted.

Frames of smaller size are often encapsulated in larger frames.

A gateway is a node in a network that provides interconnectivity between networks of different types.

For a basic Internet connection, the gateway provides Internet access to the local network.

The gateway metric is used for routing decisions, and is added to routing tables to enable routing decisions.

A genmask is the netmask for the destination net. For example 255.255.255.255 for a host destination and 0.0.0.0 for the default route.

General Packet Radio Service (GPRS) is a mobile data service for mobile communication over 2G and 3G.

Generic Routing Encapsulation (GRE) is a multipurpose tunneling protocol using IP networks to encapsulate a number of different network layer protocols.

Global System for Mobile Communications (GSM) is a standard for protocols for digital cellular networks used by mobile phones.

A host ID is a ( IPv6 label assigned to a network device used to identify the device in the network for addressing purposes.

A hostname is a (IPv4 label assigned to a network device used to identify the device in the network for addressing purposes.

High Speed Packet Access (HSPA) is an extension of 3G mobile networks utilizing WCDMA.

Evolved High Speed Packet Access (HSPA+) is a furhter improvement on HSPA allowing for higher speeds.

HT Capabilities are information about which data rates are supported by a device or network.

The Interface Association Identifier – IAID – that is a binding between the interface and one or several IPv6 addresses. It is used in DHCPv6 servers togehter with with a DUID to identify IP allocations.

The Internet Control Message Protocol (ICMP) is used to send error messages about services or device status.

IGMP – Internet Group Management Protocol is a communications protocol used on IPv4 networks to establish multicast group memberships.

An Internet Group Management Protocol (IGMP) Proxy is a setting to enable the device to handle IGMP host tasks such as sending membership and leave group membership reports to groups.

IGMP snooping is the process of listening to IGMP network traffic to determine which paths are associatied with which IP multicast streams, and allow management of the multicast traffic.

Inotify (inode notify) is a subsystem to detect changes to the filesystem, and report those changes to applications.

The Interface Protocol setting defines the protocol/behavior for an interface.

Protocol Description
Unmanaged No defined protocol.
Static Address Static IP address.
DHCP v4 Retrieve IPv4 address through DHCP
DHCP v6 Retrieve IPv6 address through DHCP
PPP PPP interface.
PPP over Ethernet PPPoE interface.
PPP over ATM PPPOA interface.
3G PPP over GPRS/EVDO/CDMA/UMTS
4G 4G interface over LTE / HSPA+.
Point-to-Point Tunnel PTPT interface.
IPv6 Tunnel in IPv4 6in4 interface.
IPv6 Tunnel in IPv6 6to4 interface.
IPv6 rapid deployment 6rd interface.
Dual Stack Lite DS-lite interface.
PPP over L2TP PPP over L2TP.

The Interface Protocol Type defines the interface basic type and direction.

Unmanaged

The interface protocol type Unmanaged means that the connection has no defined protocol.

The Interface Type defines the base settings for the interface.

Type Description
Standalone Not requiring hardware.
Any WAN Any WAN interface.
Bridge Network bridge.

Differentiated Services (DiffServ) is a method for classifying traffic and providing quality of service for IP networks.

DiffServ uses RSVP to handle traffic flow management.

Iopsys stands for Inteno Open Platform System. It combines the efficiency and power of the SOC (System on Chip) with the OpenWrt open source distribution. It further enables the operator to leverage on the modularity of OpenWrt to integrate new applications to the CPE.

An Internet Protocol address (IP address) is a numerical identifier for a device address.

IPv4

Internet Protocol Version 4 - IPv4 - is the first major version of the Internet Protocol.

IPv6

Internet Protocol Version 6 - IPv6 - is the the successor to IPv4.

Internet Protocol over Ethernet (IPoE) is a protocol to provide an DSL Internet connection over Ethernet, by directly encapsulating the data in Ethernet frames.

Iproute2 is a collection of Linux utilities for handling routing, network interfaces, tunnels, traffic control, network-related device drivers, and other aspects.

Iptables is a firewall application that uses configured tables to determine firewall rules and routes.

Internet Protocol Television (IPTV) delivers television services over IP networks as a streaming service.

International Portable User Identity (IPUI), is a unique identifier for each DECT Handset, allowing it to be assigned a SIP identity. The identifier is a 10-digit (40-bit) hexadecimal code

An IPv4 address is an IP address represented as four groups separated by a period. Each group consists of decimal numbers between 0 and 255.

An example of an IPv4 address is 192.168.22.12.

An IPv4 address is an IP address represented as four groups separated by a period. Each group consists of decimal numbers between 0 and 255.

An example of an IPv4 address is 192.168.22.12.

Broadcast addresses in IPv4 networks are special values in the host-identification part of an IP address.

An IPv6 address is an IP address address represented as eight groups separated by colons (:). Each group contains four hexadecimal digits.

An example of an IPv6 address is 2011:09bd:583a:0000:8a2e:0000:0370:7334.

An IPv6 address is an IP address address represented as eight groups separated by colons (:). Each group contains four hexadecimal digits.

An example of an IPv6 address is 2011:09bd:583a:0000:8a2e:0000:0370:7334.

An Internet Protocol address (IP address) is a numerical identifier for a device address.

IPv4

Internet Protocol Version 4 - IPv4 - is the first major version of the Internet Protocol.

IPv6

Internet Protocol Version 6 - IPv6 - is the the successor to IPv4.

A IP datagram is a unit of data transmitted using the IP protocol, following a specific format which describes various aspects of the datagram, its source and its destination.

The IPv4 datagram consists of the following headers and fields:

Bits Name Description
4 VERS  IP version number 0100 (4) or 0110 (6).
4 HLEN  Header length in 32-bit words, so if the number is 6, then 6 x 32 bit words are in the header i.e. 24 bytes. The maximum size is 15 x 32-bit words which is 60 bytes. The minimum size is 20 bytes or 5 x 32-bit words.
8 Type of Service The TOS field.
16 Total Length  is the number of octets that the IP datagram takes up including the header. The maximum size that an IP datagram can be is 65,535 octets.
16 Identification  The Identification is a unique number assigned to a datagram fragment to help in the reassembly of fragmented datagrams.
3 Flags  Bit 0 is always 0 and is reserved. Bit 1 indicates whether a datagram can be fragmented (0) or not (1). Bit 2 indicates to the receiving unit whether the fragment is the last one in the datagram (1) or if there are still more fragments to come (0).
13 Frag Offset  in units of 8 octets (64 bits) this specifies a value for each data fragment in the reassembly process. Different sized Maximum Transmission Units (MTUs) can be used throughout the Internet.
8 TTL  the time that the datagram is allowed to exist on the network. A router that processes the packet decrements this by one. Once the value reaches 0, the packet is discarded.
8 Protocol  Layer 4 protocol sending the datagram, UDP uses the number 17, TCP uses 6, ICMP uses 1, IGRP uses 88 and OSPF uses 89.
16 Header Checksum  Header checksum error control.
?? IP Options  Optional field for testing, debugging and security.
?? Data  Packet contents, actual data.
?? Padding  Optionally, padding is added to make the datagram into multiples of 32 bits.

The IP Explicit Congestion Notification (ECN) field is part of the IP TOS IP header field.

It is used to signal that the network is, or is about to, experience congestion.

A device can use the ECN field to mark a packet instead of dropping it. The receiver of the packet repeats the ECN back to the sender, which can reduce the transmission rate.

ECN uses the two last bits of the TOS field encode four different codepoints:

Binary Value Description
00 Non-ECT Non ECN-Capable Transport.
10 ECT(0) ECN Capable Transport.
01 ECT(1) ECN Capable Transport.
11 CE Congestion Encountered.

IP in IP is an method to provide data tunneling by encapsulating one IP packet in another IP packet, using header information.

IP precedence is a method to assign priority to data packets by using part of the Type of Service field in the IP datagram header.

With IP precedence, the first three bits of the TOS field is used to provide one of eight possible precedence values.

Binary Value Priority
000 (0) Routine
001 (1) Priority
010 (2) Immediate
011 (3) Flash
100 (4) Flash Override
101 (5) Critical
110 (6) Internetwork Control
111 (7) Network Control

The IP Quality of Service Algorithm determines which type of QoS to provide; Strict Priority Precedence or Weighted Fair Queuing.

Strict Priority Precedence

Strict Priority Precedence means that where the the packets with the highest priority always are sent first.

Weighted Fair Queuing

Weighted Fair Queuing means that bandwidth is adjusted automatically according to traffic priority and weight value.

The IP Type of Service (TOS) field (also known as DiffServ or DSCP field) is a part of an IP datagram header, originally meant to describe the purpose of a datagram.

It is used by Differentiated Services for the DiffServ Code Point, and the optional Explicit Congestion Notification.

Inteno Universal Provisioning (IUP) is a technology for automatic delivery of service configuration and device settings.

Jitter is variations in packet arrival time, which may be caused by network congestion, timing delays, or changed routes.

A jitter buffer is storage for voice packets so they can be sent out in evenly spaced intervals used to reduce jitter, providing better transmission reliability.

There are two jitter buffer implementation types which are used by the SIP channel reciever.

Implementation Description
Fixed Use a fixed buffer size.
Adaptive Use a variable buffer size.

JUCI (Java User Control Interface) provides a command line and graphical user interface for administration of devices.

Layer 2 Tunneling Protocol (L2TP) is a protocol used to support VPNs, where security is provided in the transmitted packages rather than in the tunneling.

LAN – Local Area Network is a number of connected units within a limited area, typically a building.

Latency is the time it takes for a packet of data to get from source to destination, normally measured by performing a round-trip test: sending a packet that is returned to the sender.

The DSL Latency Path comes in three modes: Path 1 (Fast), Path 2 (Interleaved) and Both 1 & 2. Fast is used for applications sensitive to delay. Interleaved suits applications sensitive to errors.

The Link Control Protocol (LCP) is part of the Point-to-Point Protocol and is used to set up the PPP connection.

Client lease time or lease time is the length of time a local device retains an IP address.

The logical link control (LLC) layer provides multiplexing to enable different network protocols to coexist and be transported over the same network medium.

Load balancing distributes traffic over multiple networks to provide an even load on each WAN interface.

The Logging level determines how much information to display or write to file when creating system logs.

Error messages come with a identifying level tag which makes it possible to filter out messages according to severity.

Level
Emergency
Alert
Critical
Error
Warning
Notice
Info
Debug

Loop Attenuation is a measure of the quality of the line - how much the signal weakens over the loop.

Attenuation is measured in Decibel (dB). A value betwen 20dB-45dB can be considered normal.

Link Service Access Point (LSAP) fields are used to identify which protocol handler should process an incoming frame.

LSAP fields allow the receiving node to pass each received frame to an appropriate device driver which understands given protocol.

Long-Term Evolution (LTE) is a standard for high-speed wireless communication for mobile phones and data terminals, based on GSM and UMTS.

A Media Access Control (MAC) address is a unique identifier for physical network interfaces.

Firewall masquerading entails modifying addressing to allow devices to communicate with the WAN without being visible externally. To the external network, all traffic will look as originating from the gateway.

Maximum Burst Size (MBS) is the maximum size of cells that can be transmitted in direct sequence on a particular connection.

The Minimum Cell Rate (MCR) defines the lowest rate at which cells can be transported in an ATM connection.

A management information base (MIB) is used in SNMP to describe the management data structure, in the form of a hierarchical namespace containing object identifiers (OID). Each OID identifies a variable that can be read or set via SNMP.

MiniDLNA is media server for DLNA / UPnP clients.

A MAC Protocol Data Unit - MPDU - is a message transmitted to and from Media Access Control devices.

A MAC Service Data Unit - MSDU - is a unit of data transmitted to and from Media Access Control devices, containing the packet and additional link layer information.

Maximum Segment Size (MSS) is a TCP parameter specifying the largest byte size a a single TCP segment can contain for a device.

Maximum Segment Size Clamping entails changing the maximum segment size of all TCP connections with a MTU lower than 1500.

Maximum Transmission Unit (MTU) is the largest physical packet size that a network can transmit. Any packets larger than the MTU are divided into smaller packets before being sent. MTU is measured in bytes.

Multicast is group communication where information is addressed to a group of destination computers simultaneously.

IP multicast is a method of sending Internet Protocol data messages to a group of interested receivers in a single transmission. It is often employed for streaming media applications on the Internet and private networks. The method is the IP-specific version of the general concept of multicast networking.

It uses specially reserved multicast address blocks in IPv4 and IPv6.

In IPv6, IP multicast addressing replaces broadcast addressing as implemented in IPv4.

Network Address Translation (NAT) is a method to to device translate local network addresses into external addresses for the Internet.

NAT loopback is a method using NAT to provide access to services via the public IP address from inside the local network.

The NAT Port Mapping Protocol (NAT-PMP) is a network protocol to automatically detect and determine the NAT gateways to configure NAT settings and port forwarding.

The Neighbor Discovery Protocol - NDP - is an IPv6 protocol used for discovery and redirect similar to ARP and (ICMP](/glossary/i/icmp) for IPv4.

It us used to handle address configuration, node discovery, address determination, duplicate addresses detection, location of available routers and DNS servers, address prefix discovery, and maintainance of reachability information.

NDP defines five ICMPv6 packet types for communication:

Neighbor advertisements are NDP discovery messages announcing the IP addresses of the node, and are sent in response to a Neighbor Solicitation message.

In NDP, Neighbor Advertisement packets have the type 136.

Neighbor solicitations are NDP discovery messages used to determine if a network neighbor is available at a cached address, or else request the actual network address.

In NDP, Neighbor Solicitation packets have the type 135.

A netmask is a mask used to divide an IP address into subnets and specify the network's available hosts.

For example, in 255.255.225.0, “0” is the assigned network address. In 255.255.255.255, “255” is the assigned broadcast address. The 0 and 255 are always assigned.

A network bridge combines two network segments inte an aggregated network, making them behave as if they are one continuos segment.

A network interface is the access point between a device and a computer network. A network interface can be either a physical connection or a software access address.

A network profile is a global setting for your device that defines how it will work in the network.

For example, selecting a particular profile may configure your device as a wireless repeater or as a fully routed NAT gateway.

Depending on the selected profile, available features and settings will be different.

Some sample profiles:

Profile Description
Bridged IPTV IPTV service in a bridged network.
VoIP + Bridged IPTV Both VOIP and IPTV service in a bridged network.
Wireless Repeater Wireless bridge.
Fully Routed (NAT) All features with NAT capability.

Network Redirects are NDP messages sent by routers to indicate a better first hop for a particular destination.

In NDP, Network Redirect packets have the type 137.

Next hop refers to the next closest device a packet can go through, according to the routing table.

A Network Interface Controller – NIC, is an hardware component that connects a device to a network.

The WiFi Noise level is the amount of interference in your wireless signal, such as crosstalk, radio frequency interference, distortion, and so on.

It is measured in decibels from zero to -120, where a lower value is better.

Typical environments range between -100db and -80db.

NTP is a networking protocol for clock synchronization between devices in networks.

The NTP Server mode allows the device to act as a local NTP server even when losing connection to the providing NTP server.

Overlapping basic service sets (OBSS) is a setting that configures the BSS to allow coexistence between 20 MHZ and 40 MHZ overlapping basic service sets (OBSS).

OpenWrt DHCP Daemon - odhcpd is a daemon used to provide server services for DHCP, RA, and NDP.

OpenWrt is an open source distribution with an excellent overall user space environment, modular and flexible system design. It has a large and active development community.

More information:

More information and documentation is available at http://wiki.openwrt.org/.

An Organizationally Unique Identifier - OUI - is a 24-bit number used to uniquely identify a vendor.

Usually makes up the first three octets of the MAC address.

Overhead is extra data or processing needed to manage delivery of a network data.

The Open Web-Server Daemon - OSWD - handles web requests to the configuration framework. I allows access to device configuration services through the configuration framework.

A packet is a portion of data that transmitted between a source and destination in a network. It normally a smaller part of some larger unit of data, which is tagged with an identification number and an address. When all packets for a specific data unit arrives at their destination, they are reassembled to form the original data.

Division into packets, transmission and reassembly is governed by a transmission protocol.

Packetization is the process diciding data into packets for transmission according to a defined protocol.

Packet aggregation means combining packets into larger units, in order to reduce the overhead associated with each transmission.

When packets are transmitted in a network they may travel different routes from source to destination. This means there is no guarantee that packets will arrive in time or arrive at all. They may also be denied at the receiver due to a full buffer or other issues. A collective term this is packet loss.

A queueing discipline / packet scheduler is a network function that distributes available bandwidth to different connections according to an algorithm.

The management is done by deciding how many packets each connection is handed, by handling the device traffic queue and making prioritizing incoming/ingress or outgoing/egress packets.

The scheduling can be done either by automatically, based on observed traffic, or following rules according to a Quality Of Service protocol such as Intserv or DiffServ.

Pairing is the process of making two compatible wireless devices able to communicate with each other. This is normally done by making them visible to each other, and providing a PIN code for identification.

Password Authentication Protocol (CHAP) is a method used to authenticate PPP sessions.

PAP works like a standard login procedure; using a static user name and password combination.

A Private Branch Exchange (PBX) is a switch used for connecting telephone devices or virtual applications in an organization. It manages internal communication in the network and provides access to the external publixk switched telephone network, and allows for sharing of lines and direct communication between internal devices.

Pulse-code modulation (PCM) is the standard method for digital audio. PCM entails converting analog signals to digital values by sampling the amplitude of the analog signal at set time intervals. Each sample is quantized to the nearest value within a range of digital steps. With PCM, the ranges vary with the source amplitude, so that the steps are larger at higher amplitudes.

PCM is defined by sampling rate (number of times per second that samples are taken) and bit depth (number of different digital values).

Peak Cell Rate (PCR) defines the highest rate at which cells can be transported in an ATM connection.

The Periodic Inform setting determines whether CPEs must periodically send information to the CPE.

The PID – Process ID – is an unique idenitifer for a process, assigned to it when it is loaded into memory.

Ping is a network tool which tests accessibility of hosts on an Internet Protocol network. It measures how long a it takes for a message to travel from the measuring host to the destination and back.

Packet loss concealment (PLC) is a technique to mask the effects of packet loss in VoIP communications.

Traffic Policing is a QoS process where packets are handled according to user-defined criteria. Depending on the criteria, the packets may be marked, dropped or completely ignored.

The purpose of traffic policing is to make sure that bursts in traffic hare handled and the designated traffic flows get appropriate bandwidth.

A Point of Presence (PoP) is an access point to the Internet.

A port is a communication endpoint, identified by a number, which combined with an IP address provides the necessary addressing for a service on the network.

Port forwarding is a feature that forwards inbound traffic from the internet on a specific port (or ports) to a specific device (or port) on your local network (LAN).

Port speed settings affect how a LAN or WAN port negotiates the speed setting.

Negotiation can be turned off (speed setting: only) or use Autonegotiation (speed setting max) to determine actual speed.

Communication on a port can be either half or full duplex.

A port that is set to disabled does not handle any traffic.

The PPID – Parent Process ID – is the PID of the process that started a particular process.

Point-to-Point Protocol (PPP) is a protocol for providing a direct data link connection with authentication, encryption and compression.

PPP over ATM (PPPoA) is a protocol using PPP to provide an DSL Internet connection over Ethernet.

PPP over Ethernet (PPPoE) is a protocol using PPP to provide an DSL Internet connection over Ethernet, by putting PPP frames inside Ethernet frames.

The Precedence setting defines quality of service parameters relating to Class Selector and Assured Forwarding priority.

ID Setting
All Default
0 CS1, AF11, AF12
1 CS2, AF21, AF22
2 CS3, AF31, AF32
3 CS4, AF41, AF42
4 CS5, Voice-admit, EF
5 CS5
6 CS6
7 CS7

Prefix delegation is used in DHCPv6 to assign a network address prefix and automate configuration and provisioning of the public addresses for the network.

A protocol is a set of rules for how to handle data, specifically for transmission and management. The sender and reciever noth use the same protocol to structure, send and receive it, ensuring that the data remains intact, readable and usable.

A proxy server works as an intermediary between the client and other servers, forwarding traffic to and from the servers and client. I adds functionality for improving aspects of the connection, such as security, reliability or simplicity.

A packet-switched data network - PSDN - is a network where communication is done by transmitting and receiving data packets. Devices are note connected directly, but packets from different sources going to different destinations share transmission channels.

A Pre-Shared Key (PSK) is a shared secret which was previously shared between the two parties using some secure channel before it is used.

The Public Switched Telephone Network (PSTN) is the publicly available network of telecommunication systems and services provided by telephone operators.

Pulse-Time Modulation means encoding traffic into a pulsing signal signal for transfer.

The PTM Proprity defines how PTM traffic packets should be handled.

Priority Description
Normal Priority Sen packets according to their priority.
High Priority Use preemption; lower-priority packets are paused when higher-priority packets are sent.

Point-to-Point Tunneling Protocol (PTPT) is a technology for virtual private networks through TCP and a GRE with PPP packets.

A queueing discipline / packet scheduler is a network function that distributes available bandwidth to different connections according to an algorithm.

The management is done by deciding how many packets each connection is handed, by handling the device traffic queue and making prioritizing incoming/ingress or outgoing/egress packets.

The scheduling can be done either by automatically, based on observed traffic, or following rules according to a Quality Of Service protocol such as Intserv or DiffServ.

Quality of Service (QoS) involves setting for data traffic tha affect performance, allowing resources to be allocated depending on the needs of various types of traffic.

A QoS Class is a set of rules for various traffic settings that can be applied to data traffic to ensure particular needs for Quality of Service.

A Quality Of Service Filter is used by classful QDiscs to determine which QoS Class a packet should belong to.

The filter contains a number of parameters/conditions that the packet needs to match in order to be enqueued in the appropriate class.

A QoS Class group is a collection of QoS classes which can be added to an interface to provide a combination of settings.

The Quality of Service Mark is used when classifying traffic. Packets matching the filter will be marked with the provided hexadecimal code 0x000000-0xFFFFFF.

This mark can then be used for identification and filtering purposes, for example by iptables .

Scheduling is a QoS process when a packet scheduler decides to make a packet leave earlier than other packets.

Quantization of signals is a method where a signal is sampled at specified time intervals and the input values are approximated to provide a smaller set of values compared to the actual signal.

The Router Advertisement Daemon - radvd is an open-source software product that provides Neighbor Discovery Protocol services.

The Remote ID is an identifier for the client, added to all traffic from the device itself and devices communication through it.

RFC 1918 - Address Allocation for Private Internets - defines standards for IP addresses in a private local network.

Addresses with in these ranges cannot be routed on the Internet:

10.0.0.0 - 10.255.255.255 (10/8 prefix) 172.16.0.0 - 172.31.255.255 (172.16/12 prefix) 192.168.0.0 - 192.168.255.255 (192.168/16 prefix)

RFC 2275 - View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)- defines an access method for resources based on view access. It limits the access of multiple users having various security levels different views of the object tree.

A Read Only Memory - ROM - is a read-only memory containing firmware for the device.

Typically, the term ROM actually refers to media that can be erased and re-programmed (is an Erasable Programmable ROM - EPROM, and Electrically Erasable Programmable ROM - EEPROM.)

A Root Queueing Discipline is a Quality Of Service collection point for multiple QDiscs/packet schedulers containing classes and class groups used for QoS.

The IP Route is the path a data message takes through an Internet Protocol network.

Router advertisements are NDP discovery messages periodically sent by routers from each multicast interface, announcing the IP addresses of that interface.

In NDP, Router Advertisement packets have the type 134, and can be triggered by a Router Solicitation message.

Router solicitations are NDP discovery messages used by hosts to trigger Router Advertisement messages from connected routers.

In NDP, Router Advertisement packets have the type 133.

The route metric is used for routing decisions, and is added to routing tables to enable routing decisions.

Routing is the process of selecting paths in a network along which to send network traffic, making routing decisions to ensure that traffic moves from the source to the destination.

Dynamic routing is the most common method, where routing protocols are used to manage routing automatically.

Static routing means that routes are set up permanently using a routing table.

Policy based routing entails selecting routes based on the type of traffic being transmitted, tryingt to use more efficient routes for priority traffic.

A routing table is a table stored in a device used for keeping track of routes to network destinations and metrics belonging to those routes. The information in the routing table is used by devices to make routing decisions for traffic in the network.

Route Description Comment
Network Path to a specific network address.
Host Route to a specific network address by network and host ID. Used to optimize specific types of traffic.
Default Route stored in the routing table. Used when no other routes for the destination are found.

A Request SPECification (RSPEC) is part of a Flow Specification, and defines the requirements for a flow.

Different possible service types:

Type Description Examples
Best Effort No guaranteed level of service. WWW, FTP
Controlled Load Behaves as Best Effort for an network without load.
Guaranteed Guarantees a minimum level of service, but no benefit wpuld be provided by higher levels. Real-time control, latency and delay.
Qualitative Not imediately quantifiable, but better than Best Effort.

Received signal strength indicator (RSSI) is a measurement of the power of a received radio signal.

RSS – Resident Set Size indicatres how much memory is allocated to a process and is in RAM.

It includes all stack and heap memory, and shared libraries also in memory, but not memory that is swapped out.

The Resource ReSerVation Protocol - RSVP - is a signalling mechanism used for network management of packets.

It uses a method where resources available to handle Quality Of Service traffic is broadcasted throughout the network.

Listening devices reply with a RESV (Reserve) message containing a flow specification for the traffic.

Devices on the route between sender and listener either accept the reservation and handle the flow, or send a reject message.

Reservations can end normally or time out as needed.

The Real-time Transport Protocol (RTP) is a protocol for handling transmission of real-time data, typically audio or video over networks services. Control and monitoring features are provided thorugh the Real Time Streaming Protocol.

The Real Time Streaming Protocol (RTSP) is a protocol for control over transmission of real-time data with the Real-time Transport Protocol.

A RX chain is the transmit/receive signal processing hardware, such as a radio transceiver with its own antenna.

The RX Chain Power Save feature turns one of the receive chains off to save power.

The maximum number of packets per second that the WLAN interface should process for during RX Chain Power Save Quiet Time before the RX Chain Power Save feature activates itself.

The number of seconds the packets per second must be below the value before the Rx Chain Power Save feature activates itself.

Samba is an open source software that provides file and print services between Linux/Unix servers and Windows-based clients.

Sustained Cell Rate (SCR) is the maximum average rate at which cells can be sent over the connection. SCR can never be greater than PCR.

Service types define the guaranteed level of service in a ATM network. This involves such things as the timing between the source and destination, the guaranteed bandwidth and how many cells get lost in transmission.

Setting Description
UBR without PCR Use Unspecified Bit Rate without Peak Cell Rate.
UBR with PCR Use Unspecified Bit Rate with Peak Cell Rate.
CBR Use Constant Bit Rate.
Non-Realtime VBR Use Non-Real-Time Variable Bit Rate.
Realtime VBR Use Real-Time Variable Bit Rate.

The Small Form-factor Pluggable (SFP) connector is a hot-pluggable transceiver used for telecommunication and data.

More information:

For more information see the wikipedia article.

Traffic Shaping is a QoS process where packets are delayed, in order to keep exiting traffic under a maximum rate, or make bursts smoother.

The Session Initiation Protocol (SIP) is a protocol for handling communication sessions, most commponly for Internet telephony for voice and video calls, as well as instant messaging, over Internet Protocol networks.

A SIP Address is similar to a phone number for voice calls to other SIP accounts.

A SIP Authentication Name is used together with an SIP Realm to provide access to SIP services. The authentication username doesn't have to be the same as the SIP user name.

SIP codecs are codecs designed for use with SIP traffic.

G.711ALaw

G.711ALaw is a companding standard using non-linear encoding and decoding to provide pulse code modulation mainly of voice frequencies with the A-law variant algorithm.

G.711MuLaw

G.711MuLaw is a companding standard using non-linear encoding and decoding to provide pulse code modulation mainly of voice frequencies with the μ-law variant algorithm. It provides higher compression than A-Law, with higher distorion for smaller packets.

G.729a

G.729 is a compression standard with linear compression for voice with low bandwith rewuirements, suitable for voip applications where bandwith conservation is an issue. It divides 10ms packets for a 8kbit/s transmission rate.

G.726

G.726 is a compression standard using ADPCMto transmit voice at transmission rates of 16, 24, 32, and 40 kbit/s. The 32 kbit/s mode is the standard codec for DECT wireless phone systems.

A SIP domain is a DNS hostname for SIP traffic routing.

A SIP realm is a SIP authentication/authorization component, defining the set of usernames and passwords for a particular protection domain. The SIP realm does not have to be the same as a the SIP domain.

The SIP Realm is used together with an SIP authentication username to provide access to SIP services.

The SIP Reg Interval is how often connections to a SIP provider is updated. This is normally done by updating the registration with the server.

A SIP server (also called SIP Registrar or SIP Proxy) handles SIP management for a IP-based private branch exchange.

It handles setup and connections for SIP calls in a network, but does not handle actual transmission of real-time data.

A SIP User is the identifier for a SIP account. This may be a phone number.

The Subnetwork Access Protocol (SNAP) is an LLC extension used to distinguish additional higher layer protocols compared to LSAP.

SNAP fields allow the receiving node to pass each received frame to an appropriate device driver which understands given protocol.

Simple Network Management Protocol (SNMP) is a protocol for managing and devices on an IP network.

An SNMP agent provides access to managament data as variables that can be modified to perform managment tasks remotely. The variables accessible via SNMP are organized in hierarchies and stored together with metadata in Management Information Bases.

Signal-to-noise ratio (SNR) is defined as the power ratio between a signal and background noise.

It is normally measured in decibels (dB).

dB value Description
< 6dB Poor. No sync, or intermittent sync problems.
7dB - 10dB Fair. Vulnerable to conditions.
11dB-20dB Good.
20dB-28dB Very good.
29dB < Excellent.

The SNR margin is the difference between the current Signal to Noise Ratio and minimal SNR required to sync at a specific transfer speed.

Higher SNR margin means a better signal, with less background noise, which in turn means a more stable the connection.

Strict Priority Precedence means that where the the packets with the highest priority always are sent first.

Seamless Rate Adaptation (SRA) allows devices to change data transfer rates on the fly to avoid losing a connection due to interference.

The Secure Real-time Transport Protocol (SRTP) is a protocol used for providing authentication, encryption, and other se curity features with the Real-time Transport Protocol.

A Service Record (SRV record) is a specification of data in the Domain Name System containing information about IP and port for a specific service.

It is used by domain servers to keep track of their own changes without having to contact a central DNS server.

An SRV record has the form:

_Service._Proto.Name TTL Class SRV Priority Weight Port Target

Item Description
Service Identifier for the service.
Proto The service protocol.
Name Domain name where the record is valid.
TTL DNS time to live.
Class DNS class (IN for Internet).
Priority Target host priority, lower value means more preferred.
Weight A relative weight for records with the same priority.
Port Port for the service.
Target Hostname for the service provider.

Simple Service Discovery Protocol (SSDP) is a network protocol capable of discovering universal plug and play devices on a home network.

Secure Shell (SSH) is a protocol for secure communication on networks. Most commonly it is used for remote login to devices, typically to unix shell accounts.

SSID – Service Set IDentifier, also knowns as network name, identifies a wireless network interface.

Secure Sockets Layer (SSL) is a protocol for providing security features such as authentication, privacy and data integrity in a network.

Source-specific multicast (SSM) is a method of limiting delivery of multicast packets only from a requested source address.

The process state code indicates the state for a process.

Short Code Meaning Description
D Uninterruptible sleep Usually refers to IO processes.
l Is multi-threaded (using CLONE_THREAD, like NPTL pthreads do)
L Has pages locked into memory (for real-time and custom IO)
N Low-priority (nice to other users)
R Running runnable (on run queue)
s Is a session leader
S Interruptible sleep Waiting for an event to complete.
T Stopped May have been stopped by control signal or trace.
W Paging Storing or retrieving data.
Z Defunct (“zombie”) process Terminated but not collected by its parent process.
< High-priority
+ Belongs to foreground process group.

A static IP address is an address that doesn't change, unless manually changed by the administrator.

A static route is a manually entered route to a network destination, which is used instead of any routes discovered automatically.

Session Traversal Utilities for NAT (STUN) consists of methods and a protocol to allow a server to discover its public IP address from behind a NAT. It is used for real-time voice, video, messaging, and other interactive IP services.

The protocol requires a STUN server located on the public side of the NAT.

Subnet Mask

A subnet mask is used to divide the IP address into network and host addresses.

A Subscriber ID is a identifier assigned to messages indepenedently from client and physical network identifiers, providing an ID that persists over network and path changes.

The Transmission Control Protocol (TCP) is a protocol to provide reliable data streams over an IP network.

Transmission Control Protocol (TCP) Flags are control bits for TCP messages. These flags indicate how packets should be handled or indicate connection states.

Flag Description
SYN Synchronize sequence numbers.
ACK Acknowledgment field is significant.
FIN No more data from sender.
RST Reset the connection.
URG Urgent pointer field is significant.
PSH Push function.
CWR Congestion Window Reduced.
ECE TCP peer is ECN capable.

Time Division Synchronous Code Division Multiple Access (TD-SCDMA) is an UMTS 3G mobile networks in China.

TKIP (Temporal Key Integrity Protocol) is a RC4 stream cipher is used with a 128-bit per-packet key, meaning that it dynamically generates a new key for each packet.

Transport Layer Security (TLS) is a protocol for providing security features such as authentication, privacy and data integrity in a network.

A token bucket algorithm is a method of handling packet traffic, by using an analogy of a bucket containing a number of tokens that arrive at a particular rate. Tokens are used to limit when data packets are transmitted.

The depth of the bucket limits the number of tokens, and the rate of arriving tokens limits how quickly packets can be sent.

The concept is as follows:

  • Tokens are added to the bucket at a fixed rate.
  • If the bucket becomes full, arriving tokens are thrown away.
  • Arriving data packets use up tokens from the bucket and are transmitted on the network.

This means that the bucket needs to be deep enough to handle bursts of traffic, and the token rate limits the transmission rate.

Transmission Power Control (TPC) is used to automatically adjust the transmission power level on wireless radios to avoid interference.

TPTEST allows you to measure the speed of your Internet connection, by sending a number to and from a defined reference test server.

More information:

A list of TP test servers is available at http://tptest.sourceforge.net/servers.php.

TR-069 CPE WAN Management Protocol (CWMP) was created by the DSL Forum to standardize the Wide Area Network (WAN) management of CWMP. The TR-069 protocol specifically defines a common method for CPE devices to communicate with an Auto Configuration Server (ACS).

Traceroute is a network diagnostic tool to discover the route and data delivery time over an Internet Protocol network.

See also Ping.

A Traffic SPECification (TSPEC) is part of a Flow Specification, and describes traffic flow properties, typically involving token bucket algorithm parameters.

Time to live (TTL) is a mechanism to determine when data in a network should be discarded, for example for cache expiry, or to prevent data from being transmitted forever.

Unscheduled Automatic Power Save Delivery (UAPSD) is a wifi device feature which allows them to save power by dozing between transmissions.

UBIFS file-system stands for “Unsorted Block Images File System”.

It is a flash file system, designed to work with flash devices, using Memory Technology Device (MTD) device files.

Unspecified Bit Rate (UBR) is used for non-real-time applications that do not require any maximum bound on the transfer delay or cell loss.

OpenWrt micro bus architecture - UBUS - is a combination of daemon, library and helpers to provide communication between various daemons and applications in OpenWrt.

The ubus command line tool can be used to interact with the ubusd server to and manage services through JSON .

Command referencs is available at https://wiki.openwrt.org/doc/techref/ubus.

User Datagram Protocol (UDP) is a protocol to provide relatively unreliable data streams over an IP network. It provides no guarantees for delivery and no protection from duplication.

The simplicity of UDP reduces the overhead from using the protocol and the services may be adequate in many cases.

Universal Mobile Telecommunications System (UMTS) is a third generation mobile cellular system for networks based on the GSM standard.

Unicast is communication where information is addressed to a single destination.

The interface protocol type Unmanaged means that the connection has no defined protocol.

Universal Plug and Play (UPnP) is a set of networking protocols used for automatic discovery and communication on a network. It makes it possible for various devices to connect and share services.

UPnP involves automatic port forwarding set up without user interaction. This may constitute a security risk.

USB – Universal Serial Bus is a standard for connection, communication, and power supply between computers and electronic devices.

The User Class uniquely identifies the type or category of user or applications it represents.

A Universally Unique Identifier (UUID) is an 128-bit identifier used to uniquely identify objects.

Example: 65613210-44d4-11e6-beb8-9e71128cae77

The service type Variable Bit Rate come in two variants: Non-Realtime VBR and Realtime VBR.

Non-Real-Time Variable Bit Rate (nrt-VBR) is used for connections that need guaranteed bandwidth or latency, but do not rely on accurate timing between source and destination.

Real-Time Variable Bit Rate (rt-VBR) is used for connections that need accurate timing between source and destination.

Virtual Channel Identifier - VCI, is used together with VPIs to enable ATM networks.

In an ATM network, each circuit is given a virtual channel identifier, and and each path is given a virtual path identifier.

The VCI identifies circuit/channel in use, and VPI matches the appropriate path to the desired destination host.

Virtual Circuit Multiplexing (VC-MUX) is a method for identifying the protocol carried in frames used in ATM.

Using virtual circuit multiplexing, hosts agree on the high-level protocol for a given circuit. Each high-level protocol requires a separate virtual circuit.

Very-high-bit-rate digital subscriber line (VDSL) is a DSL technology providing network traffic over copper wires.

VDSL is faster than ADSL, with up to 52 Mbit/s downstream and 16 Mbit/s upstream speeds.

A Vendor ID - VID - is a unique number identifying a device.

Virtual network interfaces are linked to a hardware device, but are not hardware devices.

A virtual network interface is generally associated with a physical network, another virtual interface, a loopback interface or other standalone interfaces.

Types of Virtual Network Interfaces

Type Example Description
Aliases eth4:5, eth4:6 Used to handle multiple IP-addresses per interface. Supported for backwards compatibility.
Bridges br0, br-lan Used to make multiple network interfaces behave as one network interface.
Stacked VLANs 10, 20 IEEE 802.1ad type network, using two or more tags in each packet.
Special purpose imq0, teql3 Used to change the order of outgoing or incoming network packets.
Tunnel interfaces pppoe-dsl, tun0, vpn1 Used to send packets over a tunneling protocol.
VLANs eth4.0, vlan0 Used to separate a network into multiple virtual networks.
Wireless operating mode virtual interfaces wlan0, ath3 A wireless subsystem created automatically for a wireless NIC master interface.

A virtual LAN (VLAN) is, as the name implies, a virtualized LAN. Most commonly a VLAN is a subdivision of a network.

VLANs also allow grouping of hosts together even if the hosts are not connected to the same network device, and managing them through software.

VoIP - Voice Over IP is a group of technologies for the delivery of voice communications and multimedia sessions over Internet Protocol networks.

A Virtual Path Identifier - VPI, is used together with VCIs to enable ATM networks.

In an ATM network, each circuit is given a virtual channel identifier, and and each path is given a virtual path identifier.

The VCI identifies circuit/channel in use, and VPI matches the appropriate path to the desired destination host.

A virtual private network (VPN) is a secured, private network connected through a public network.

VSZ is the Virtual Memory Size. It includes all memory that the process can access, including memory that is swapped out and memory that is from shared libraries.

VSZ is the Virtual Memory Size. It includes all memory that the process can access, including memory that is swapped out and memory that is from shared libraries.

A Wide Area Network (WAN) is network that extends over a large geographical distance.

Wideband Code Division Multiple Access (W-CDMA) is a mobile communications technology using CDMA for broadband.

Wired Equivalent Privacy (WEP) is a security algorithm intended to provide security comparable a wired network.

WEP uses a key of 10 or 26 hexadecimal digits.

Weighted Fair Queuing means that bandwidth is adjusted automatically according to traffic priority and weight value.

WiFi or Wi-Fi is a technology allowing devices to connect to a wireless LAN (WLAN) network. The term “Wi-Fi” is a play on words relating to hi-fi (high fidelity) from the music industry. Communication is commonly done over 2.4 gigahertz and 5 gigahertz radio bands.

A wifi band is a collection of wifi channels provided by a particular wifi radio.

Bands are identified by their frequency as measured in Gigahertz (GHz).

Standard bands are 2.4GHz and 5Ghz.

A wifi channel is a frequency range in a specific wifi band used for wifi communication.

WiFi encryption means to encrypt the messages that are sent between nodes on a wireless network.

A wifi interface can use one of several encryption options:

None No encryption.
WEP Wired Equivalent Privacy
WPA2 Personal (PSK) Wi-Fi Protected Access
WPA/WPA2 Personal (PSK) Mixed Mode Wi-Fi Protected Access II Pre-Shared Key
WPA2 Enterprise Wi-Fi Protected Access II Enterprise
WPA/WPA2 Enterprise Mixed Mode Wi-Fi Protected Access Enterprise / Wi-Fi Protected Access II Enterprise

A wireless interface is the access point to a wireless radio. Interfaces are identified by their SSID.

Each radio can have several SSIDs and each SSID interface can be configured as part of a network bridge or firewall group.

The WiFI Key or passphrase is a shared secret between client and server used for encryption and decryption in wireless networks.

The WiFi Mode defines which to use for wireless communication in the network.

Auto

The Auto Mode allows the device to automatically select a suitable profile among the available options.

802.11a

802.11a is a wireless radio specification for the 5 GHz band with a maximum data rate of 54 Mbit/s.

802.11ac

802.11ac is a wireless radio specification for both the 2.4 GHz and the 5 GHz bands with support for multiple-input multiple-output antennas, providing a maximum data rate from 433 Mbit/s to 1300 Mbit/s.

802.11b

802.11b is a wireless radio specification for the 2.4GHz band with a maximum data rate of 11 Mbit/s .

802.11b/g

802.11b/g is a wireless radio specification combining 802.11b and 802.11g standards in dual band mode.

802.11g

802.11g is a wireless radio specification for the 2.4 GHz band with a maximum data rate of 54 Mbit/s.

802.11n

802.11n is a wireless radio specification for both the 2.4 GHz and the 5 GHz bands with support for multiple-input multiple-output antennas, providing a maximum data rate from 54 Mbit/s to 600 Mbit/s.

A wireless radio is the device sending out a wireless signal. Each radio can have several interfaces associated with it.

A Wireless Local Area Network is Local Area Network connected through one or several access points.

WiFi Multimedia - WMM (also known as WiFi Multimedia Extension - WME) - improves quality of service on a network by prioritizing data by four configurable categories:

Voice: Voice packets for Voice over IP (VoIP) calls.

Video: Video packets for support of TV streams.

Best effort: Support for legacy devices or devices lacking QoS standards.

Background: File downloads, print jobs and other traffic that does not suffer from increased latency.

WMM does not provide guaranteed throughput.

WMM (WiFi Multimedia) Acknowledgement is a verification signal sent from the client to the device to indicate that no error has been detected for the data .

WMM Power Save allows small devices, such as phones and PDAs, to transmit data while in a low-power status.

Wi-Fi Protected Access 2 Enterprise is designed for enterprise networks and requires an authentication server.

It provides additional security (e.g. protection against dictionary attacks on short passwords).

Various kinds of the Extensible Authentication Protocol (EAP) are used for authentication.

Short for Wi-Fi Protected Access 2 – Pre-Shared Key, and also called WPA2 Personal, it is a method of securing your network using Pre-Shared Key (PSK) authentication,

Wi-Fi Protected Access 2 Personal uses pre-shared passphrases between 8 and 63 characters long.

The wireless device converts the preshared key to a hash and uses that for communication authentication.

Also referred to as WPA-802.1X mode, and sometimes just WPA (as opposed to WPA-PSK), is designed for enterprise networks and requires an authentication server.

It provides additional security (e.g. protection against dictionary attacks on short passwords).

Various kinds of the Extensible Authentication Protocol (EAP) are used for authentication.

Wi-Fi Protected Access (WPA), also referred to as WPA-PSK (pre-shared key) does not require an authentication server.

It uses TKIP, with a key either as a string of 64 hexadecimal digits, or as a passphrase of 8 to 63 characters.

WPA also includes a message integrity check, which is designed to prevent an attacker from altering and resending data packets.

WPA-Personal mode is available with both WPA and WPA2.

Wi-Fi Protected Setup (WPS) is an authentication key distribution method. It can be performed in one of several ways.

PIN code: A PIN is entered on the client.

Push button: An actual or virtual button is pressed on the device and the client within a short amount of time.

Near field: The client is brought physically close to the device.

USB: An USB device is used to transfer data between the new client and the device. (Deprecated)

A Wireless Wide Area Network (WWAN), is a wireless network that extends over a large geographical distance.

Second-generation wireless telephone technology (2G), is a cellular network for digital mobile data communication.

Third-generation wireless telephone technology (3G), is a cellular network for digital mobile data communication for broadband traffic.

Fourth-generation wireless telephone technology (4G), is a cellular network for digital mobile data communication for high-speed broadband.

6in4 is a method to transmit IPv6 traffic over explicit IPv4 connections.

The traffic is sent over the IPv4 Internet inside IPv4 packets whose IP headers have the IP protocol number set to 41.

6rd is a method for IPv6 rapid deployment on Internet Service Provider IPv4 infrastructures, operating within the ISP's network.

6to4 is a method to transmit IPv6 traffic over IPv4 networks without having to configure explicit tunnels.

802.1p is a standard for priority levels, identifying the class of service a VLAN is to be used for. There are 8 different levels, numbered from 0 to 7.

Priority Acronym Traffic types Comment
0 BK Background Lowest
1 BE Best Effort
2 EE Excellent Effort
3 CA Critical Applications
4 VI Video < 100 ms latency and jitter
5 VO Voice < 10 ms latency and jitter
6 IC Internetwork Control
7 NC Network Control Highest

IEEE 802.1Q is a standard for Ethernet VLANs where VLANs are given a numeric tag. The tag is used to identify traffic in networks, and decide how to handle it.

This allows multiple bridged networks to share the same physical link without leaking information to each other networks.

802.11a is a wireless radio specification for the 5 GHz band with a maximum data rate of 54 Mbit/s.

802.11ac is a wireless radio specification for both the 2.4 GHz and the 5 GHz bands with support for multiple-input multiple-output antennas, providing a maximum data rate from 433 Mbit/s to 1300 Mbit/s.

802.11b is a wireless radio specification for the 2.4GHz band with a maximum data rate of 11 Mbit/s .

802.11b/g is a wireless radio specification combining 802.11b and 802.11g standards in dual band mode.

802.11g is a wireless radio specification for the 2.4 GHz band with a maximum data rate of 54 Mbit/s.

802.11n is a wireless radio specification for both the 2.4 GHz and the 5 GHz bands with support for multiple-input multiple-output antennas, providing a maximum data rate from 54 Mbit/s to 600 Mbit/s.

3: Group
